100A
Bluetooth&Self Heated Function
200A
>3000 times
3 years
CE/RoHS/UN38.3/MSDS

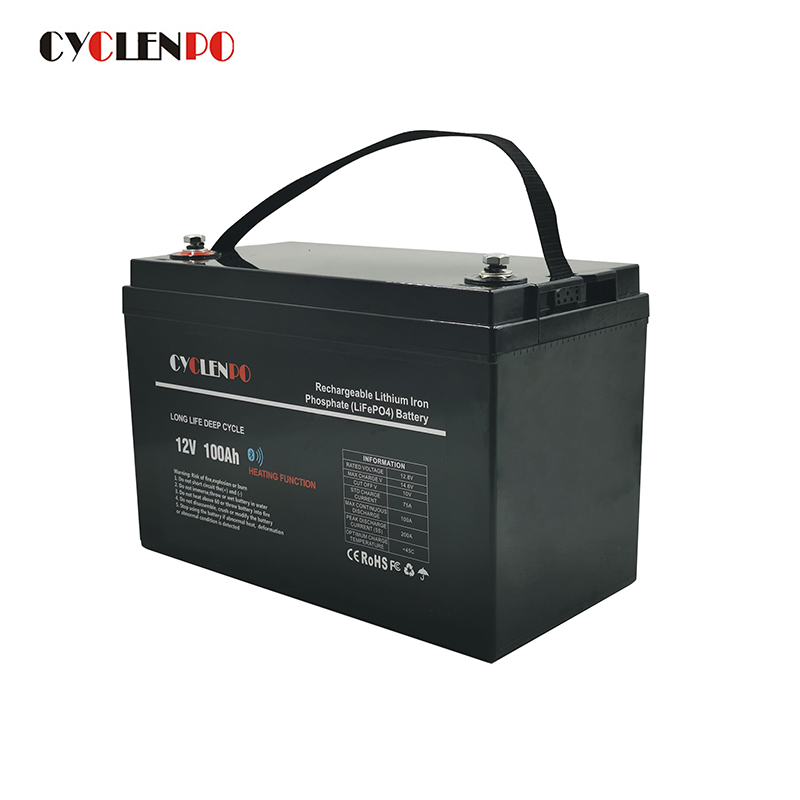

Wanna read your battery status freely? Wanna improve battery discharge performance in freezing winter? Cyclen offer this 12 volt 100 amp hour lithium battery, of which BMS is built with bluetooth & self heated function.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
ATL 3.2V 100AH
|
Single
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
Standard capacity（0.2C5A）
|
100Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage：3.20V
|
|
Max.Charge voltage
|
14.6V
|
Single Ave. charge Voltage 3.65V
|
|
Cut-off voltage
|
10V
|
Single Ave. Discharge Voltage 2.5V
|
|
Standard charge current
|
50A
|
0.5C
|
|
Charging Time
|
About 5h
|
|
|
Max Continuous discharge current
|
100A
|
1C
|
|
Peak discharge current
|
200A
|
2C （5seconds）
|
|
Battery dimension
|
328±1*171±1*215±1mm
|
|
|
Total weight（Approx.)
|
About 15kg
|
|
|
Impedance（Max, at 1000Hz.）
|
≤ 45mΩ
|
|
|
Charge method (CC/CV) |
Standard
|
0℃～45℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-20℃～45℃
|
Bluetooth Function (APP is available for android and ios)
Self-heated Function
To relieve winter range anxiety in some freezing environment, resistance heating rapidly warms the inside of battery. Start heating temperature:≤0°C. Stop heating temperature:≥5°C.
1. OEM&ODM manufacturer with various design and one-stop battery solution.
2. Reliable quality; Factory direct price; Complete production lines.
3. Timely and professional pre-sales service and after-sales service.
4. 100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 12 volt 100 amp hour lithium battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
