100A
200A
525±1*270±1*222±1mm
About 28.5.0kg
>3000times
3years

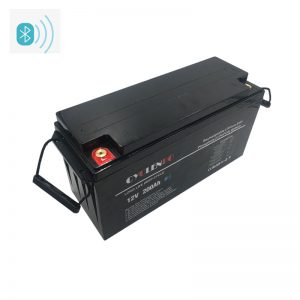

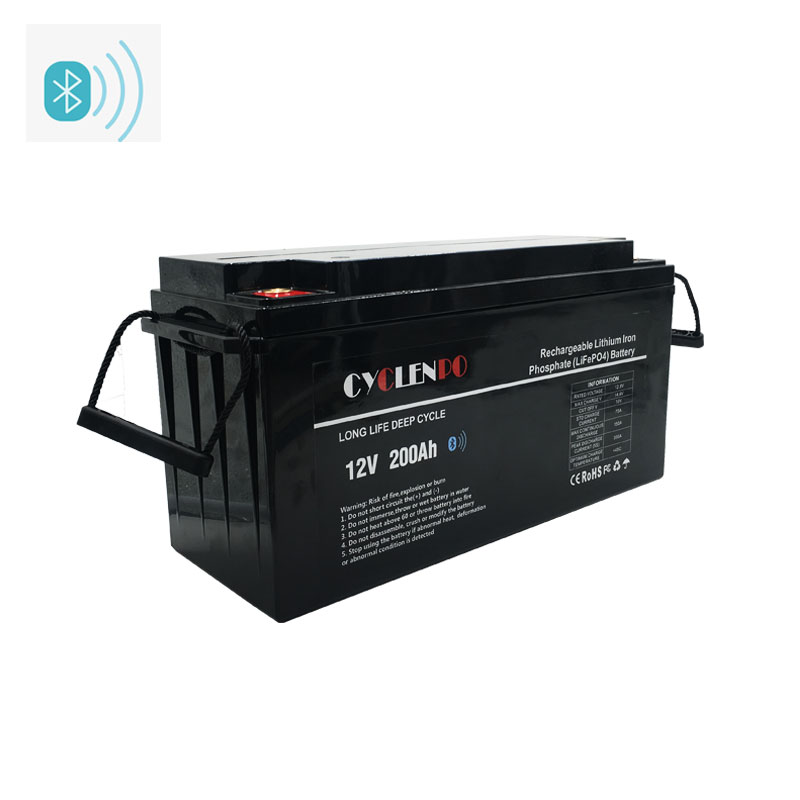

This 12v 200ah lithium ion battery is installed by high quality IFR 32650-5Ah cells with high precision BMS protection system.Besides,we add smart bluetooth function so if you need to check battery status, just download app.Read battery status from computer. Or freely check your battery through App on your phone without excel form.
|
Normal performance
|
|||
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
IFR 32650-5Ah
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity(0.2C5A)
|
200Ah
|
|
|
4
|
Rated voltage
|
12.8V
|
3.20V(Work voltage:3.20V)
|
|
5
|
Max.Charge voltage
|
14.6V
|
3.65V(Single Ave. charge Voltage)
|
|
6
|
Cut-off voltage
|
10V
|
2.50V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
30A
|
0.2C
|
|
9
|
charging Time
|
About 5h
|
|
|
10
|
Max Continuous discharge current
|
100A
|
0.5C
|
|
11
|
Peak discharge current
|
200A
|
1C10seconds
|
|
12
|
Battery dimension
|
525±1*270±1*220±1mm
|
|
|
13
|
(Approx.)Total weight(Approx.)
|
About 28.5kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|
||
Features of our lifepo4 battery pack
About Bluetooth Function
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 12v 200ah lithium ion battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 12 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
