(168±1)mm *(128±1)mm *(103±1)mm
≥3000times
2year
CE/RoHS/UN38.3/MSDS
black
approx: 2kg
Credit Card.Paypal.TT.Escrow.Western Union
standard carton packaging or according customer's special needs
3-7days
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
4IFR12.8-22-Y
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity
|
22Ah
|
|
|
4
|
Rated voltage
|
12.8V
|
3.20V(Work voltage:3.20V)
|
|
5
|
Max.Charge voltage
|
14.4V
|
3.65V(Single Ave. charge Voltage)
|
|
6
|
Cut-off voltage
|
10V
|
2.50V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
≤ 3A
|
|
|
9
|
Charging Time
|
About 8.0hours(standard charge)
|
|
|
10
|
Max Continuous discharge current
|
30A
|
5min
|
|
11
|
Peak discharge current
|
22A
|
1C 10seconds
|
|
12
|
Battery dimension
|
(168±1)mm *(128±1)mm *(103±1)mm
|
|
|
13
|
(Approx.)Total weight(Approx.)
|
Approx:2.0Kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤≤ 40mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|

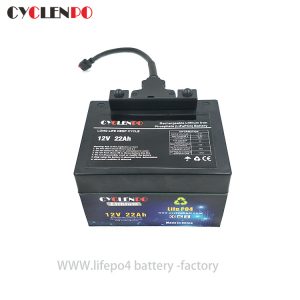

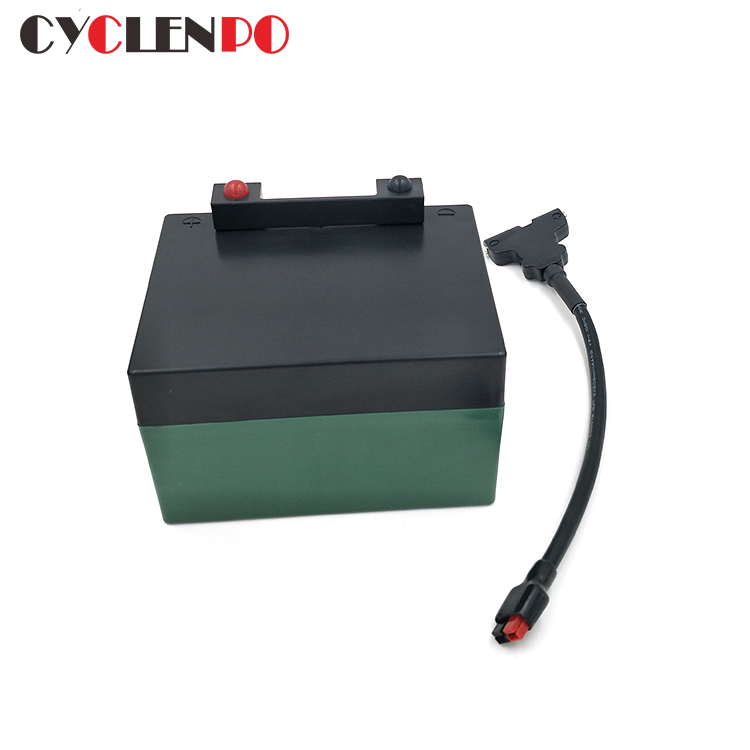

Features of 12V 22Ah Lithium Battery
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 12v 22ah lithium ion battery pack?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
