This start battery lithium automotive battery series are based on lifepo4 technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2V 40AH
|
Single
|
|
Casing material for single cell
|
Prismatic cells
|
1S4P
|
|
Standard capacity（0.2C 5 A）
|
40Ah
|
|
|
Rated voltage
|
12.8V
|
Work voltage：3.20V
|
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage 3.6V
|
|
Cut-off voltage
|
10.5V
|
Single Ave. Discharge Voltage 2.63V
|
|
Standard charge current
|
20A
|
0.5C (can be adjusted )
|
|
charging Time
|
About 2.5h
|
|
|
Max Continuous discharge current
|
80A
|
2C
|
|
Peak discharge current
|
500A
|
12.5C 2seconds
|
|
Battery dimension
|
197±1*128±1*220±1mm
|
Max dimension
|
|
Total weight（Approx.)
|
About 5.5kg
|
Each box weight, 1pcs / box
|
|
Impedance（Max, at 1000Hz.）
|
≤ 8mΩ
|
Between the positive and negative
|
|
High cold cranking Amps
|
300 CCA
|
-20℃
|
|
Battery case material
|
ABS
|
|
|
Charge method (CC/CV) |
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
|
|
storage
|
-40℃～55℃
|
Higher safety performance. BMS provide over current, over voltage, over temperature, short circuit protection. No fire hazard.

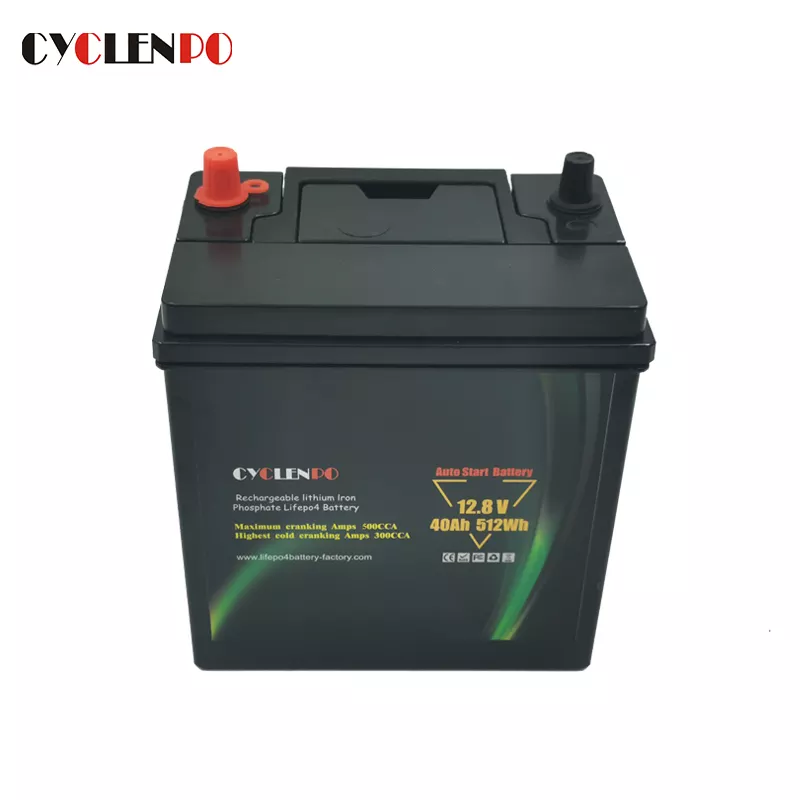

12v 40ah lifepo4 cranking battery Prismatic Cells
About 1/3 lighter in weight compared with lead acid batteries. More than 3000 cycle life and start your car more times repeatable
Peak 1000CCA Starting Power
Quick start-off ability.Capable of high current (we offer 300CCA-1000CCA ) to meet different vehicles' need.
After testing, within 5 minutes after starting, the battery charging current is close to 0A, and the idling fuel consumption of the car is reduced by more than 10%.
