deep cycle 12v 40ah vehicle battery

vehicle battery
  • vehicle battery
  • 12v 40ah vehicle battery
  • 12v off road battery
  • slimline vehicle battery
  • ultra slimline lifepo4 battery

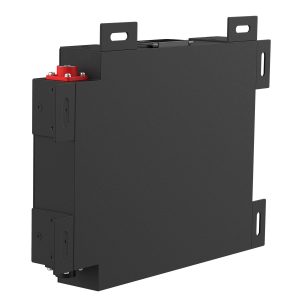

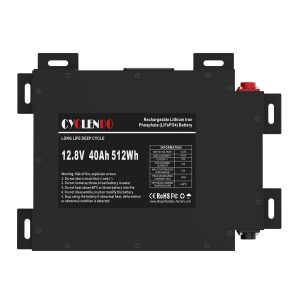

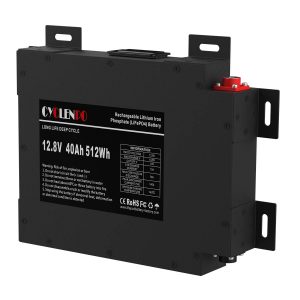

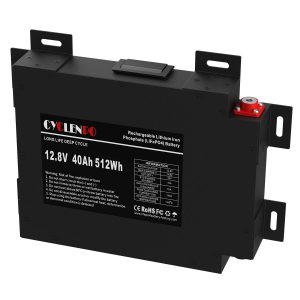

Deep cycle 12v 40ah ultra slimline vehicle battery

Ultra slimline lifepo4 battery for off road/vehicle 12v 50ah/60ah/100ah/120ah/150ah/200ah


Product Specification:

  • Model :

    3.2V 50AH

  • Rated voltage:

    12.8V

  • Battery dimension:

    277*223*106mm

  • Total weight(Approx.):

    About:6.8kg

  • Charge method (CC/CV):

    Standard 0℃~45℃ discharge -20℃~65℃ storage -20℃~45℃

  • warranty:

    4years

Inquiry Now

12v 40ah lithium battery  for vehicle/off-road

Lifepo4 batteries outperform lead acid batteries in many ways. They are lighter, smaller but deliver durable and stronger power. Have you ever thought of switching from traditional batteries to new technology lifepo4? Cyclen offer full series lifepo4 batteries for your deep cycle applications. Here are specification of our 12v 40ah Lifepo4 Battery module.

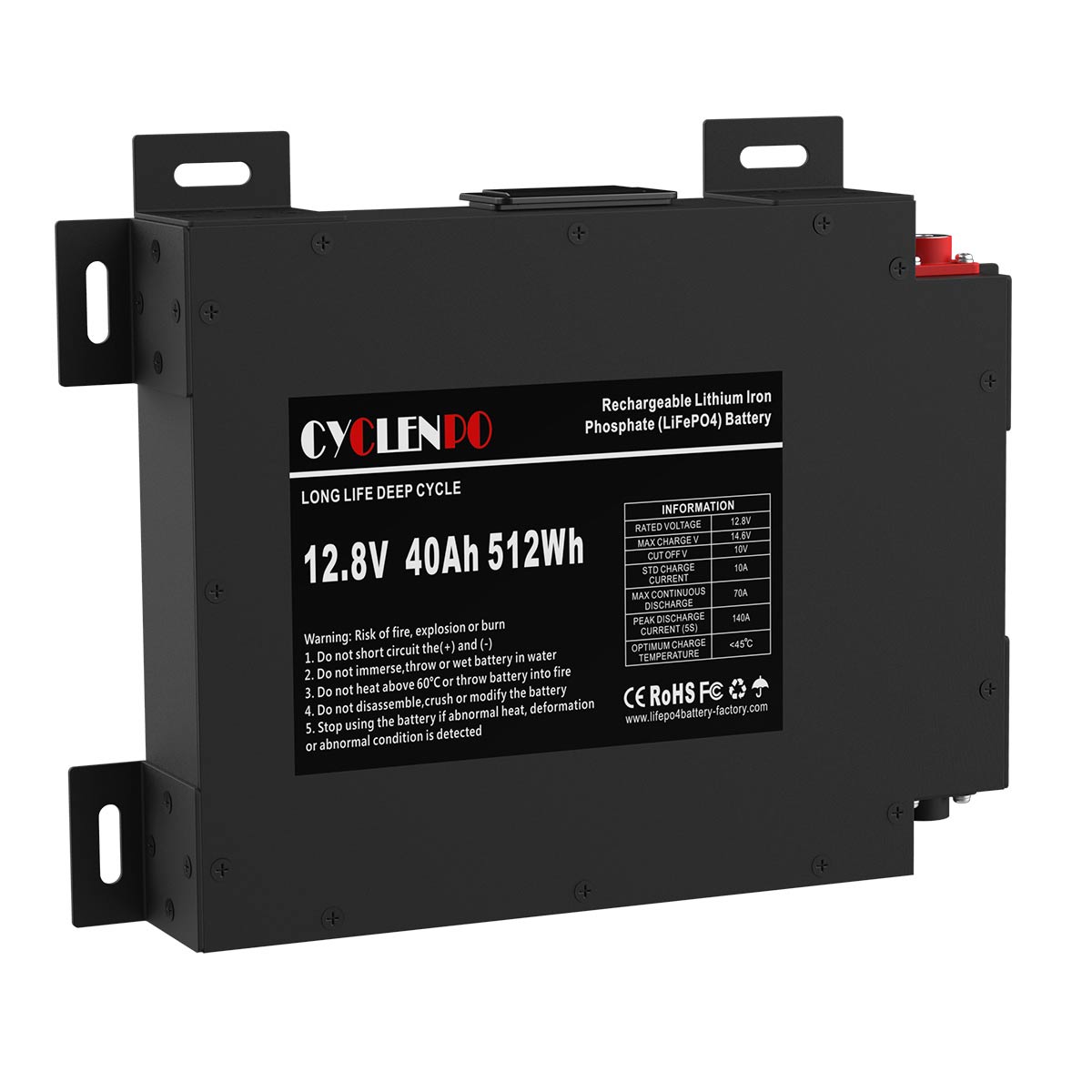

5.jpg12v 40ah vehicle battery

12v 40ah lithium battery for off road

High Quality Lithium Ion battery 12v 40ah,Ultra thin Lithium Ion Batteries For Off Road, lighter in weight but higher in power,Battery

Rated voltage 12.8V
Battery working voltage 10~14.6V
Rated capacity 40Ah
Total Energy 0.512 KWh
SOC range 20%-100%
Charge /discharge capacity efficiency ≥96%
Max.Charge current 50
Peak discharge current 140
Battery cycle life More than 3000 cycle at 1C(Room temperature capacity retention rate:>90%)
Battery weight About:10.8kg
Battery construction 4S1P

Bms protect 12v 40ah Lifepo4 Battery from:

1. Overcharge

2. Overdischarge

3. Themal protection

4. Short curcuit

5. Cell balancing

Key Features of 12v 40ah vehicle battery

1.Off-road vehicles,

2.high safety &Deep cycle,

3.limited space for special use,

4.save space can be used for refitting,

5.strong shaking resistance ,

6.harsh environment use

BMS Built in 12v 40ah lifepo4 vehicle Battery

  • Overcharge Protection
  • Overdischarge Protection
  • Overcurrent Protection
  • Short Circuit Protection
  • Thermal Protection

LiFePO4 Battery Modules Cyclen Supply

Model Rated Voltage Nominal Capacity Dimension Weight
CY-LFP-1250t 12.8V 50Ah 277*223*106mm 6.8kg
CY-LFP-1260t 60Ah 277*223*106mm 6.8kg
CY-LFP-12100t 100Ah 395*285*110mm 11.5kg
CY-LFP-12120t 120Ah 552*240*110mm 13kg
CY-LFP-12150t 150Ah 552*285*110mm 14.5kg
CY-LFP-12200t 200Ah 557*317*124mm 21.5kg
CY-LFP-2450t 25.6V 50Ah 395*285*110mm 11.84kg
CY-LFP-2460t 60Ah 395*285*110mm  13kg
CY-LFP-2460t(2) 60Ah 552*240*110mm  13kg
CY-LFP-2480t 80Ah 552*285*110mm 14.5kg
CY-LFP-24100 100Ah 557*317*124mm 21.5kg

Our Services

Besides the standard 12V 24V 36V 48V modules for you to choose, Cyclen can customize other battery specifications as you require.

1. Dimension , shape, case (abs/Iron)

2. Terminal (M8,M6, Anderson , Stud)

3. BMS:Discharge current and charge current etc

4. LCD screen/bluetooth app/Can bus

5. Logo, package etc

The products we display don't represent the limitation of us.We can customize other battery specifications like:

  • Voltage
  • Capacity
  • Charge current
  • Discharge current
  • Battery shape
  • Temperature condition

and etc. If you are interested in our products, please don't hesitate to contact us at any time.We will work out

the perfect battery solution for you.

Factory Production

We conduct strict production precedures to make sure of the safety and superior performance of each lifepo4 battery, guaranteeing only defect-free products are delivered.

Deep Cycle LiFePO4 12V 100Ah Battery Pack WIth BMS

Battery Test.

Our battery packs and cells have passed different test: short circuit, drop test, over charge test and extrusion test. No explosion. No fire, no smoke, no leak.

Deep Cycle LiFePO4 12V 100Ah Battery Pack WIth BMS

Our Certifications

We obtained a list of certifications including ISO9001, SGS,

Productions carry UN38.3, CE, ROHS, FCC and series of MSDS certifications.

Deep Cycle LiFePO4 12V 100Ah Battery Pack WIth BMS

With Our Customers

We have exported our battery packs worldwide for years, and have gained customers' recognization.

Deep Cycle LiFePO4 12V 100Ah Battery Pack WIth BMS

Deep Cycle LiFePO4 12V 100Ah Battery Pack WIth BMS

FAQ

1. Where can I get the price of lifepo4 12v vehicle battery ?

The price depends on your quantities and your requirements.If you are interested in our products, Please click “Inquire Now” above to get our product catalog and price list. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.

2. What are the payment methods?

We support TT, paypal, credit card etc.

3. What's the lead time?

It depends on your order quantity.Normally 1-2 days if we have samples in stock, 5-10 days for newly produced samples. 15-20 days for big order.

4. What shipping methods can I choose, how about the shipping time?

Our sales will help you choose the most cost-effective shipping methods.

Express (3-10 working days), suitable for urgent time or small quantity.

Sea (15-30 days), it suitable for mass production.

Air (4-7 days), from airport to airport.

5. What is the package? Is that safe?

We pack the battery in safe and standard way.One battery in one carton box, and filled with EPE foam on the top and at the bottom. For heavier battery packs, we adopt wooden case. We will send you the battery photo before shipping and the shipping agent we work with are reliable and professional.

6. What's the warranty? How can I get support after I purchase the vehicle battery?

Different warranty for different models. Usually 3-5 years for higher capacity packs.

1-2 years for smaller battery models. During warranty time, we can send you new ones if your battery fail to work due to its own quality problem. You can contact us about any battery problems via email, skype, whatsapp and wechat. Our sales and engineers will help you work it out.
