ultra slimline lifepo4 battery for off road/vehicle 12v 50ah/60ah/100ah/120ah/150ah/200ah,24v 50ah/60ah/80ah/100ah

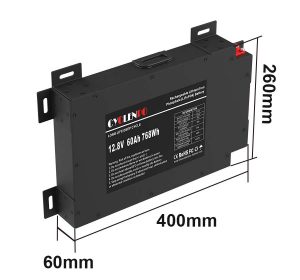

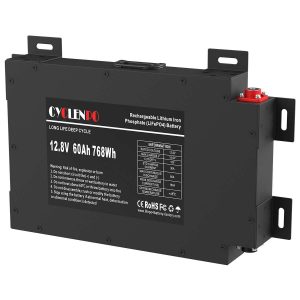

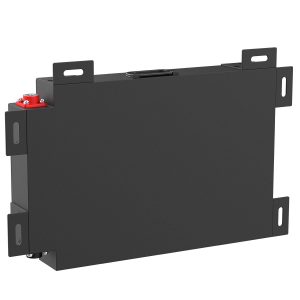

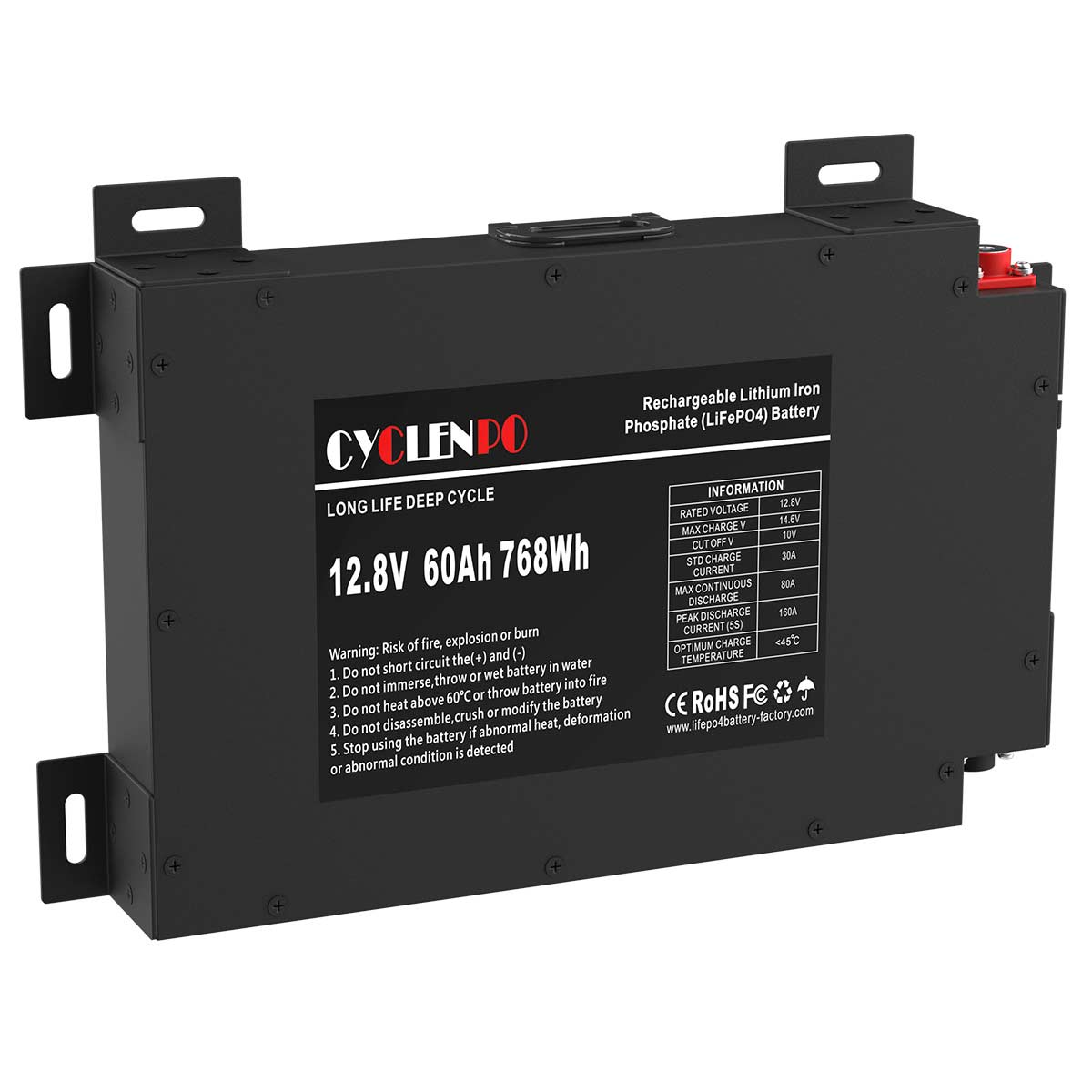

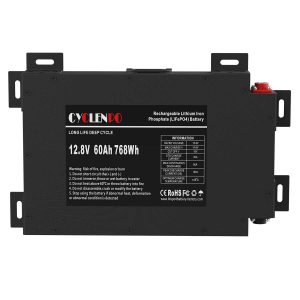

12v 60ah vehicle battery Production Specification
Item | General Parameter | |
1 | Battery type | Lithium iron phosphate battery |
2 | rated voltaged/capacity | 3.2v 60ah |
3 | Single cell voltage | 2.5v-3.65v |
4 | Weight of battery single cell | 1.18±0.20kg |
5 | Dimension | 140*24*160 |
6 | Positive | Peridot lithium iron phosphate material |
7 | Negative | Artificial graphite |
8 | Electrolyte composition | LiPF6 |
9 | Electrolyte morphology | barren liquor |
10 | Working temperature | Charge and discharge at -20℃-60℃ |
11 | Cycle life | More than 3000cycle at 1C |
12 | Rated voltage | 12.8v |
12 | SOC range | 20%-100% |
Key Features of 12v 60ah lifepo4 battery
1.Off-road vehicles,
2.high safety &Deep cycle,
3.limited space for special use,
4.save space can be used for refitting,
5.strong shaking resistance ,
6.harsh environment use
BMS Built in 12v 60ah battery
LiFePO4 Battery Modules Cyclen Supply
Model | Rated Voltage | Nominal Capacity | Dimension | Weight |
CY-LFP-1250t | 12.8V | 50Ah | 277*223*106mm | 6.8kg |
CY-LFP-1260t | 60Ah | 277*223*106mm | 6.8kg | |
CY-LFP-12100t | 100Ah | 395*285*110mm | 11.5kg | |
CY-LFP-12120t | 120Ah | 552*240*110mm | 13kg | |
CY-LFP-12150t | 150Ah | 552*285*110mm | 14.5kg | |
CY-LFP-12200t | 200Ah | 557*317*124mm | 21.5kg | |
CY-LFP-2450t | 25.6V | 50Ah | 395*285*110mm | 11.84kg |
CY-LFP-2460t | 60Ah | 395*285*110mm | 13kg | |
CY-LFP-2460t(2) | 60Ah | 552*240*110mm | 13kg | |
CY-LFP-2480t | 80Ah | 552*285*110mm | 14.5kg | |
CY-LFP-24100 | 100Ah | 557*317*124mm | 21.5kg |
Cyclen is a chinese lithium ion batteries manufacturer specialized on producing high performance lithium lifepo4
battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you
are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.
Battery Test.
Our battery packs and cells have passed different test: short circuit, drop test, over charge test and extrusion test. No explosion. No fire, no smoke, no leak.
Our Certifications
We obtained a list of certifications including ISO9001, SGS,
Productions carry UN38.3, CE, ROHS, FCC and series of MSDS certifications.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
Express (3-10 working days), suitable for urgent time or small quantity.
Sea (15-30 days), it suitable for mass production.
Air (4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
12v 60ah vehicle battery
