≥3000times
3 years
CE/RoHS/UN38.3/MSDS
black or optional
About 29kg
Credit Card.Paypal.TT.Escrow.Western Union
525±1*270±1*220±1mm or customized
3-7days
standard export packaging
Using the latest lithium iron phosphate technology, lighter in weight but heavier on power.Built in BMS protection, they are also very safe in normal conditions.This 24v 100ah lithium ion battery is widely used in camping car, marine, EV, energy storage etc.
|
Normal performance
|
|||
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
3.2Ⅴ100Ah
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity(0.2C5A)
|
100Ah
|
|
|
4
|
Rated voltage
|
25.6V
|
3.20V(Work voltage:3.20V)
|
|
5
|
Max.Charge voltage
|
28.8V
|
3.65V(Single Ave. charge Voltage)
|
|
6
|
Cut-off voltage
|
20V
|
2.50V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
40A
|
0.4C
|
|
9
|
charging Time
|
About 5h
|
|
|
10
|
Max Continuous discharge current
|
100A
|
1.0C
|
|
11
|
Peak discharge current
|
200A
|
2.0C10seconds
|
|
12
|
Battery dimension
|
525±1*270±1*220±1mm
|
|
|
13
|
(Approx.)Total weight(Approx.)
|
About 33.6kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|
||
BMS Overall Protection

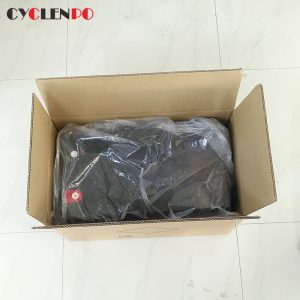

Packing and delivery
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 24v 100ah lithium ion battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
