≥ 3000times
3 years
CE/RoHS/UN38.3/MSDS
Avaliable
347*310*119.5 mm
Credit Cardl.TT.Escrow.Western Union etc

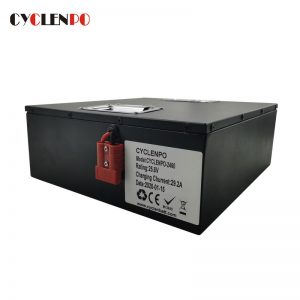

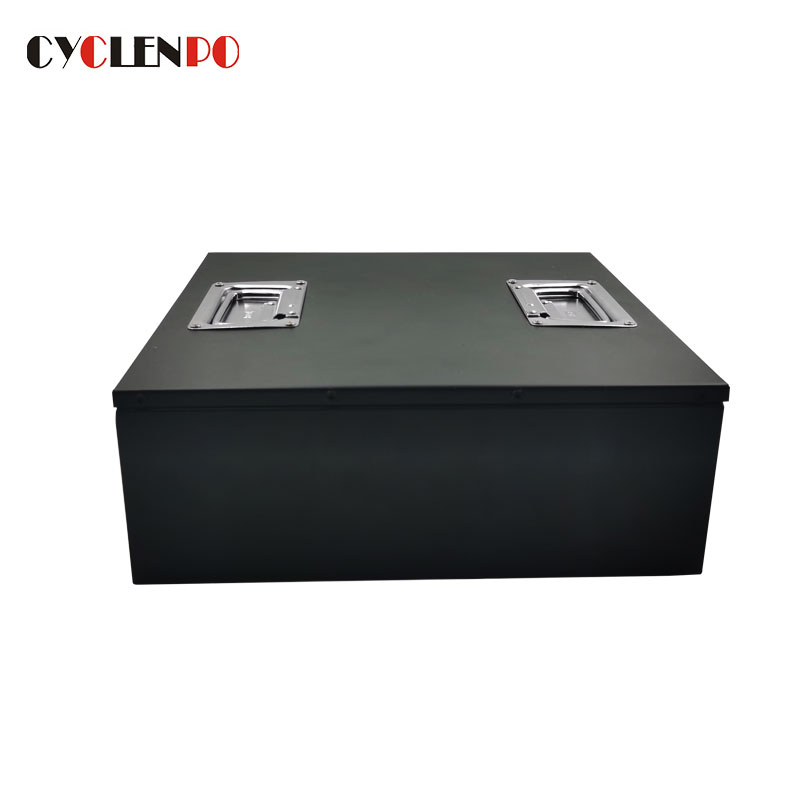

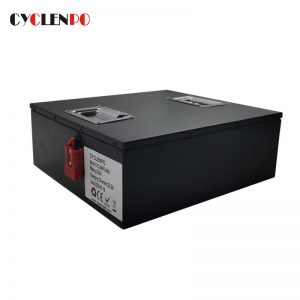

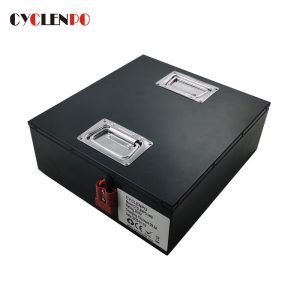

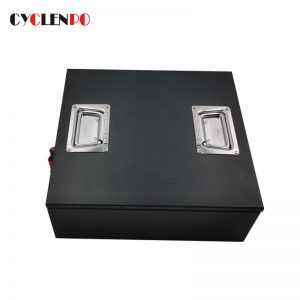

This 24v 60ah lithium ion battery adopt the latest lithium iron phosphate technology and builted in BMS overall protection. Lighter in weight but heavier on power. Ideal battery for agv, low speed ev, robots and so on. Cyclen has a variety of 12v 24v 48v drop in lead acid replacement batteries to choose from. We offer customization services too.If you have any questions about our products, please contact us and we will work out the perfect solution for you.
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
IFR3.2V 60Ah
|
8S1P
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity(0.2C5A)
|
60Ah
|
|
|
4
|
Rated voltage
|
25.6V
|
3.20V(Work voltage:3.20V)
|
|
5
|
Max.Charge voltage
|
29.2V
|
|
|
6
|
Cut-off voltage
|
20V
|
2.50V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
20A
|
|
|
9
|
Charging Time
|
About 3-5h
|
|
|
10
|
Max Continuous discharge current
|
20A
|
0.5C
|
|
11
|
Peak discharge current
|
60A
|
1C
|
|
12
|
Battery dimension
|
347*310*119.5 mm
|
|
|
13
|
(Approx.)Total weight(Approx.)
|
About 16kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|
Main Features of AGV Lithium Battery
1.Using lithium iron phosphate cell, superior safety
2.More than 3000 cycles @ 80%DOD, under normal conditions
3.Plug in lead acid replacement
4.Maintenance Free
5.Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
6.Wider temperature range:-20℃ ~60℃
7.High charge efficiency:0.5C-1C
BMS Function Built in 24V 60Ah Lithium Battery
1.Over Current and Over Voltage
2.Over Charge and Over Discharge
3.Thermal Protection
4.Over Load Protection
5.Cell Balancing
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 24v 60ah lithium ion battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 12 hours after we get the battery specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.Small trail order is available
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
