≥2000times
2year
CE/RoHS/UN38.3/MSDS
Credit Card.Paypal.TT.Escrow.Western Union
Customized
5kg

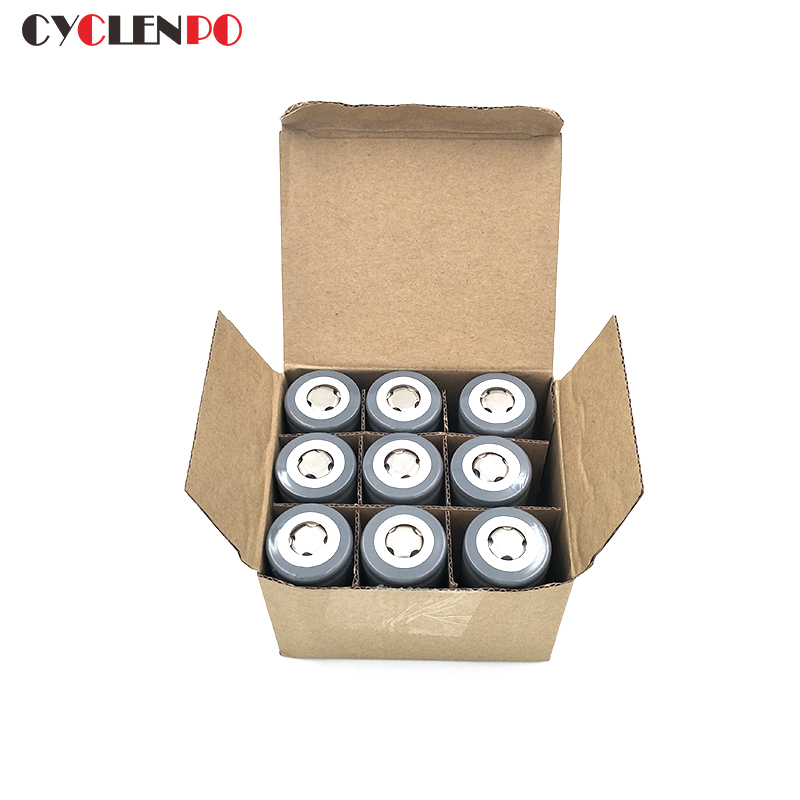

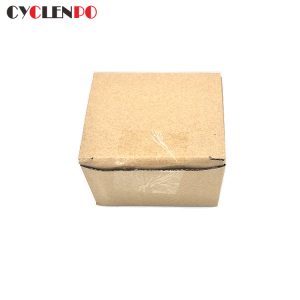

standard carton packaging or according customer's special needs
3-7days
| No | Item | General parameter | Remark | |||

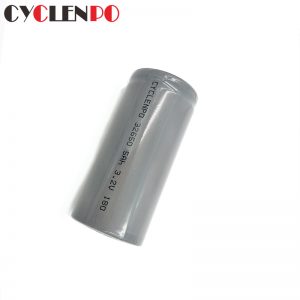

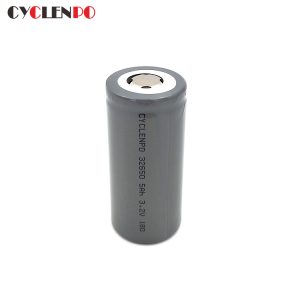

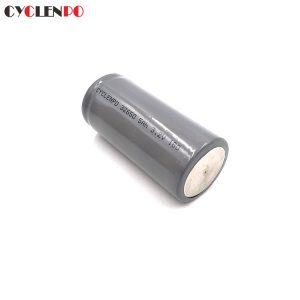

| 1 | Model | IFR 32650-5ah | Single | |||
| 2 | Casing material for single cell | steel case for single cells | ||||
| 3 | Standard capcity (0.2c5A) | 5ah | ||||
| 4 | Minimum Capcity (1c5A) | 4.75AH | ||||
| 5 | Rated voltage | 3.2V | work voltage | |||
| 6 | Max charge voltage | 3.65V | ||||
| 7 | cut-off voltage | 2.5v | ||||
| 8 | standard charge current | 1A | 0.2C | |||
| 9 | charging time | about 5.0hours | ||||
| 10 | Max continuous discharge current | 5A | 1C | |||
| 11 | Max discharge current | 12.5A | 2.5C 2 mintues | |||
| 12 | Peak discharge current | 25Ah | 5C 10ses | |||
| 13 | Dimameter | 32.2+0.5mm | ||||
| 14 | height | 70=0.2mm | ||||
| 15 | Weight (Approx ,including case ) | About 135g | ||||
| 16 | Impedance (Max.at 1000Hz) | ≤10mΩ | ||||
| 17 | charge method (CC/CV) | standard | CC/CV | 0.2c | 3.65V cut-off | |
| 3.65V | 0.05C cut-off | |||||
| 18 | Operate temperature | Charge | 0℃- 65℃ | |||
| discharge | -20℃-65℃ | |||||
| stoarge | 0℃-45℃ | |||||
our advantage
one:Professional
We are experienced and professional on various types of lifepo4 battery ,lithium battery ,and kinds of Lithium polymer battery for nearly 20 years
TWO:The excellent battery production capacity battery in china
We equipped the most advanced production machine and modern factory with total 40000 suqare metres , and total 2500 employee. The daily production capacity have over 200000pcs lion cylindrical batter and 200000pcs li-polymer battery.
THREE:Quality First
We have strict production management and quality inspection.we always persist "Quality is our soul of enterprise, service paramount" as enterprise purpose
FOUR :The Excellent Excutive Team
we have established professional customer service center that can support 7*24 hours service for any request or complain from the clients .Our services include R&D pre-support and product usage tracks after sales , and maintain the long-term partnership with clients.
