≥3000times
3 years
CE/RoHS/UN38.3/MSDS
black or optional
About 40kg
Credit Card.Paypal.TT.Escrow.Western Union
525±1*270±1*220±1mm or customized
3-7days

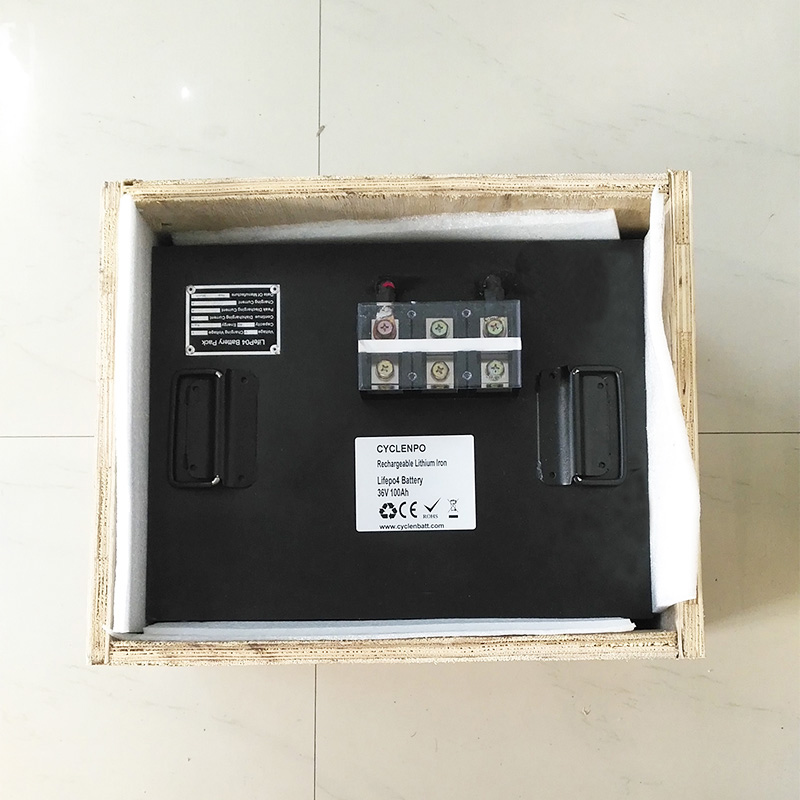

Standard wooden packaging
LiFePO4 batteries is knocking out traditional lead acid batteries, because lithium iron phosphate is the more efficient technology. Cyclen provides a complete line of 12, 24 and 36 48 volt batteries for use in RV’s, Boats, EV's and off-grid applications and much more. Our wide variety of standard and high performance batteries ensure we have what you need when you need it.
|
Normal performance
|
|||
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
IFR 3.2v 100Ah
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity(0.2C5A)
|
100Ah
|
|
|
4
|
Rated voltage
|
38.4V
|
3.20V(Work voltage:3.20V)
|
|
5
|
Max.Charge voltage
|
43.2V
|
3.65V(Single Ave. charge Voltage)
|
|
6
|
Cut-off voltage
|
30V
|
2.50V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
30A
|
|
|
9
|
charging Time
|
About 8h
|
|
|
10
|
Max Continuous discharge current
|
100A
|
|
|
11
|
Peak discharge current
|
200A
|
2.1C10seconds
|
|
12
|
Battery dimension
|
420±1*320±1*210±1mm | |
|
13
|
(Approx.)Total weight(Approx.)
|
About 39kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
15
|
(CC/CV) Charge method (CC/CV) |
Standard
|
0℃~45℃
|
|
discharge
|
-20℃~45℃
|
||
|
storage
|
-20℃~45℃
|
||
Features of our lifepo4 battery pack
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 36v 100ah lithium ion battery?
Welcome to contact the Online Service, if it is not our working time,
Please click "Send Inquiry" above or "Leave a Comment" below
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
