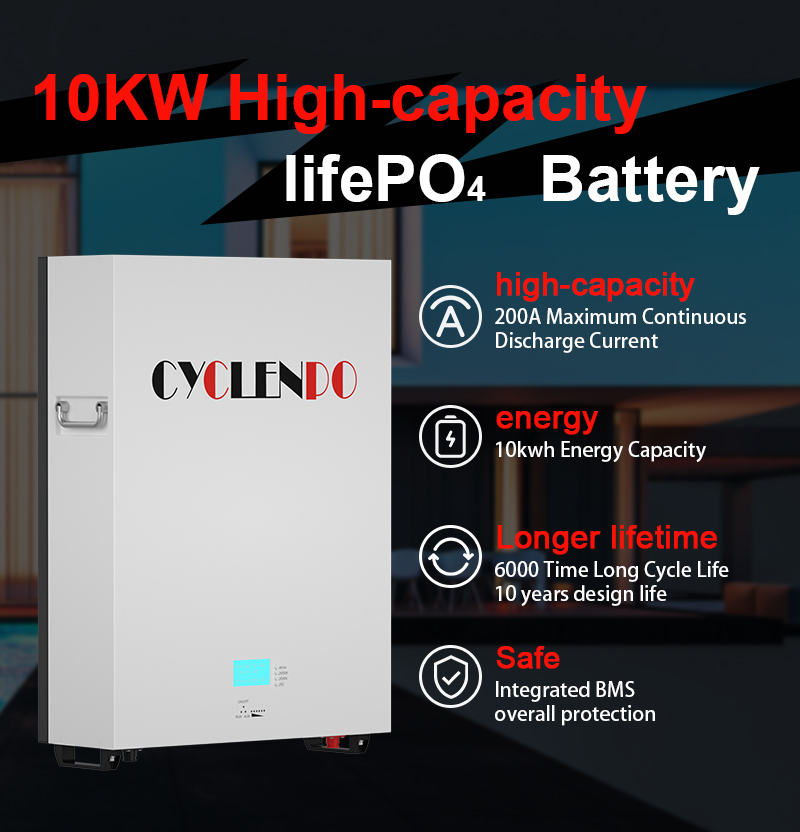

This product is installed by high quality LiFePO4 cell 16S1P with high precision BMS protection system. The battery was used the scientific internal structure design, advanced battery production technology, with high specific energy and long life, safe and reliable, wide operating temperature range and other characteristics, is a green power supply equipment
LFP Prismatic Cells
CYP-51200
650*485*180 mm
100kg
10KWH
≥ 6000 times

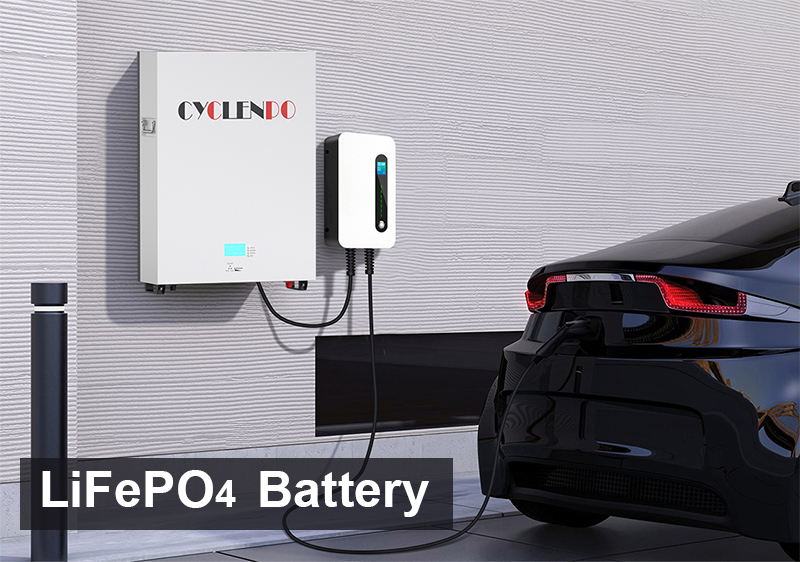

Lithium home battery,also called wall mounted battery, is a high performing storage battery developed to provide house sustainable energy. It stores extra electricity produced by sun in daytime,while keep home powered at night or electricity failure time.For saving electricity bills and backup emergency power, this lithium house battery can be a good choice. Check other models of our storage batteries.
|
Item
|
General Parameter
|
Remark
|
|
Combination method
|
16S4P
|
|
|
Rated Capacity
|
200Ah
|
Standard discharge after Standard charge
|
|
Factory Voltage
|
51.5V-52.8V(40-60%)
|
Mean Operation Voltage
|
|
Discharge Cut-off Voltage
|
40-44V
|
|
|
Charging Voltage
|
58.4V
|
|
|
Internal Impedance
|
≤50mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Standard charge current
|
20A
|
Charge time : Approx 6 h
|
|
Limiting charge current
|
20A
|
|
|
Standard discharge current
|
20A |
|
|
Max Continuous Charge Current
|
200A
|
|
|
Max Continuous Discharge Current
|
200A
|
200A when 0ºC＞T≥-10ºC
100A when -10ºC＞T≥-20ºC |
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell |
|
Discharge: -20~55℃
|
||
|
Storage Temperature Range
|
-10~35℃
|
Less than 12 months
|
|
-10~45℃
|
Less than 3 months
|
|
|
-20~65℃
|
Less than 7 day
|
|
|
Dimensions
|
650*485*180 mm
|
|
|
Weight
|
100kg
|
Benefits of 48v 200ah lifepo4 battery for Energy Storage system
(1) Making full use of clean energy.
The output power of solar energy and wind energy can be effectively smoothed. The impact to the power grid and users, which is consulted by intermittency of new energy can be effectively overcome.
(2) Providing uninterrupted power
Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood.
(3) Saving electricity for users by peak-shift.
Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
Working Mode of grid 48v 200ah lithium ion battery Solar Powerwall
(1) PV Solar Priority Mode
In this mode, the power supply to the load is fed by the solar panel input. The amount of electricity generated by the solar cell is stored in the powerwall in addition to the user load. When the amount of electricity generated by solar does not meet the user load, the amount of electricity stored in the battery bank is replenished to the load.
(2) AC Priority Mode
In this mode, the power supply of the load is provided by the mains input. Solar power only charges the house battery; When the battery power is seriously insufficient, the AC mains will start to charge the battery.When the AC mains is powered off or abnormal, the system will switch to the battery to supply power to the load.
48v powerwall battery Series
|
SERIES
|
Model
|
Weight
|
Energy
|
Dimension
|
Discharge Current (max)
|
|
15S
|
48V 100AH
|
≈ 56KG
|
4.8KWh
|
485*650*180mm
|
100A
|
|
48V 150AH
|
≈ 75KG
|
7.2KWh
|
|||
|
48V 200AH
|
≈ 95KG
|
9.6KWh
|
|||
|
16S
|
51.2V 100AH
|
≈ 58KG
|
5.12KWh
|
||
|
51.2V 150AH
|
≈ 78KG
|
7.68KWh
|
|||
|
51.2V 200AH
|
≈ 100KG
|
10.24KWh
|
Battery Test.
Our battery packs and cells have passed different test: short circuit, drop test, over charge test and extrusion test. No explosion. No fire, no smoke, no leak.
About us
Why Upgrade Your 51.2v 200ah powerwall battery
1. Providing uninterrupted power for house .
2. Cut your consumption peak and balance electricity bill.
3. Making full use of clean energy.
Why Choose Us
1. Factory direct price.
2. Puntual lead time and delivery
3. Full series lifepo4 products and small trial order is available
4. Strict quality control
5. Professional sale and after-sale services
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 48v lithium ion battery 200ah ?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
Express (3-7 working days), suitable for urgent time or small quantity.
Sea (15-30 days), it suitable for mass production.
Air (4-7 days), from airport to airport.
48v 200ah lithium battery for solar energy storage system
