48v 100ah lithium battery for home energy storage system
LFP Prismatic Cells
CYP-51100

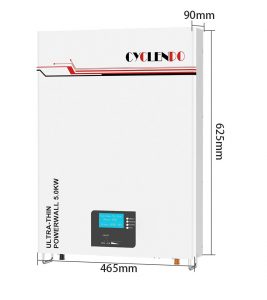

465*625*90 mm
50kg
5KWH
≥ 6000 times
CYP 48v 100ah is designed for small home energy storage system. As a 48v battery bank, it allow to add more modules to increase the capacity. Simply connect with solar panel and convertors.It provide house sustainable energy. It stores extra electricity produced by sun in daytime,while keep home powered at night or electricity failure time.For saving electricity bills and backup emergency power, this 48v 100ah lithium battery can be a good choice.
|
Item
|
General Parameter
|
Remark
|
|
Combination method
|
16S1P
|
|
|
Rated Capacity
|
100Ah
|
Standard discharge after Standard charge
|
|
Factory Voltage
|
51V-53V(40-60%)
|
Mean Operation Voltage
|
|
Discharge Cut-off Voltage
|
40-44V
|
|
|
Charging Voltage
|
56-58V
|
|
|
Internal Impedance
|
≤60mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Standard charge current
|
50A
|
Charge time : Approx 6 h
|
|
Limiting charge current
|
20A
|
|
|
Standard discharge current
|
20A |
|
|
Max Continuous Charge Current
|
100A
|
|
|
Max Continuous Discharge Current
|
100A
|
100A when 0ºC＞T≥-10ºC
50A when -10ºC＞T≥-20ºC |
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell |
|
Discharge: -20~55℃
|
||
|
Storage Temperature Range
|
-10~35℃
|
Less than 12 months
|
|
-10~45℃
|
Less than 3 months
|
|
|
-20~65℃
|
Less than 7 day
|
|
|
Dimensions
|
520*752*110 mm
|
|
|
Weight
|
50kg
|
In this mode, the power supply to the load is fed by the solar panel input. The amount of electricity
generated by the solar cell is stored in the battery in addition to the user load. When the amount of
electricity generated by solar does not meet the user load, the amount of electricity stored in the
battery is replenished to the load.
In this mode, the power supply of the load is provided by the mains input. Solar power only charges the house battery; When the battery power is seriously insufficient, the AC mains will start to charge the battery.When the AC mains is powered off or abnormal, the system will switch to the battery to supply power to the load.
Benefits of 48v lithium ion battery 100ah
(1) Making full use of clean energy.
The output power of solar energy and wind energy can be effectively smoothed. The impact to the power grid and users, which is consulted by intermittency of new energy can be effectively overcome.
(2) Providing uninterrupted power
Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood.
(3) Saving electricity for users by peak-shift.
Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
Lithium Ion Powerwall Series
|
SERIES
|
Model
|
Weight
|
Energy
|
Dimension
|
Discharge Current (max)
|
|
15S
|
48V 100AH
|
≈ 56KG
|
4.8KWh
|
485*650*180mm
|
100A
|
|
48V 150AH
|
≈ 75KG
|
7.2KWh
|
|||
|
48V 200AH
|
≈ 95KG
|
9.6KWh
|
|||
|
16S
|
51.2V 100AH
|
≈ 58KG
|
5.12KWh
|
||
|
51.2V 150AH
|
≈ 78KG
|
7.68KWh
|
|||
|
51.2V 200AH
|
≈ 100KG
|
10.24KWh
|
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2013. You are welcome to visit our factory and production process. If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system , telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc. 48V 200Ah Powerwall for option.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days based on quantity.
Q4: Can I buy one or two units as a sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Cyclenpo 48v 100ah battery for home energy storage
