50A or customized
110A
>3000 times
Approax. 55kg
(790±2)*(360±2)*(200±2)mm
3 years

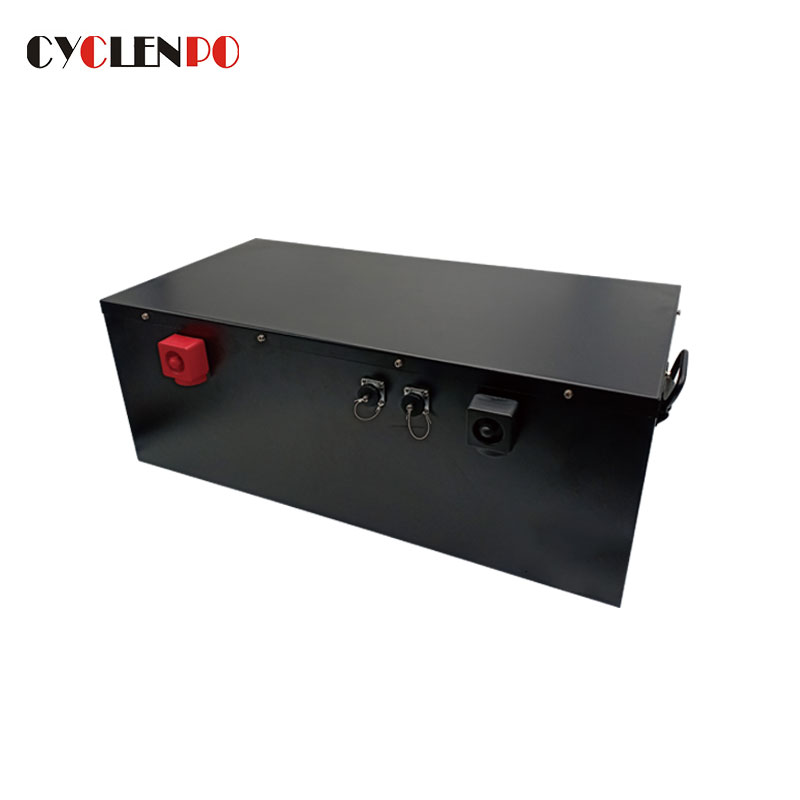

Adopted the latest lithium iron phosphate technology, and built in BMS , this 48v lithium ion battery 100ah is perfect for lead acid replacement. Lighter in weight but heavier on power, which can provide long hours of ev applications.Cyclen can customize other battery specs according to your application request.
|
Item
|
General Parameter
|
Remark
|
|
Model
|
IFR 3.2v100ah
|
Single
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
Standard capacity（0.2C5A）
|
100Ah
|
|
|
Rated voltage
|
48V
|
Work voltage：3.20V
|
|
Standard Charge voltage
|
54.75V
|
(Single Ave. charge Voltage)
|
|
Cut-off voltage
|
37.5V
|
Single Ave. Discharge Voltage
|
|
Standard charge current
|
40A
|
0.4C
|
|
charging Time
|
About2.5h
|
|
|
Max Continuous discharge current
|
50A
|
0.5C
|
|
Peak discharge current
|
105A
|
1.05C 5seconds
|
|
Battery dimension
|
(790±2)*(360±2)*(200±2)mm
|
|
|
Total weight（Approx.)
|
About 55 kg
|
|
|
Impedance（Max, at 1000Hz.）
|
≤ 8 0 mΩ
|
|
|
Working Temperature
|
Charge
|
0℃～45℃
|
|
discharge
|
-20℃～60℃
|
|
|
storage
|
0℃～45℃
|
Built in BMS protection:
1. over charge protection
2. over discharge protection
3. short circuit protection
4. cell balancing
5. over heat protection
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of 48v lithium ion battery 100ah?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7 days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
