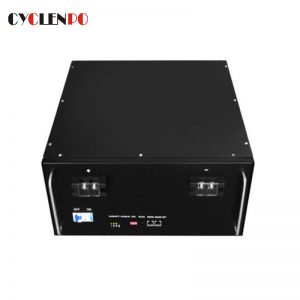

This 48V 200ah lifepo4 module is featured with high energy density, long cycle life and zero maintenance.Perfect for residential and commercial energy storage.
5 years
≥6000times
557mm*440mm*178mm
CE/RoHS/UN38.3/MSDS
black/white or optional
about 110kg
Credit Card.Paypal.TT.Escrow.Western Union

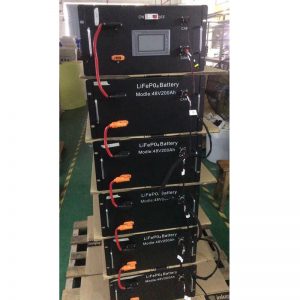

This 48v lithium ion battery 200ah module is mainly used for office building, data center, and telecom energy backup. It features long cycle life, lighter weight, stable voltage without memory effect and high safety performance. Support modular design, series and parallel to provide higher power.
| Item | General Parameter | Remark | |
| Combination method | 16S4P | ||
|
Rated Capacity
|
Typical | 200Ah | Standard discharge after Standard charge（package) |
| Minimum | 190Ah | ||
| Factory Voltage | 51.2V-52.8V(40-60%) | Mean Operation Voltage | |
| Voltage at end of
Discharge |
40-44.8V | Discharge Cut-off Voltage
|
|
| Charging Voltage | 58.4V | ||
| Internal Impedance | ≤100mΩ | Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
|
| Standard charge | Constant Current 20A
Constant Voltage see No.5 0.02CA cut-off
|
Charge time : Approx 6 h | |
| Standard discharge | Constant current：20A
end voltage see NO.4 |
||
| Maximum Continuous Charge Current | 100A | ||
| Maximum Continuous Discharge Current | 100A | 100A when 0ºC＞T≥-10ºC
50A when -10ºC＞T≥-20ºC |
| Operation Temperature Range
|
Charge: 0~45℃ | 60±25%R.H.
Bare Cell
|
| Discharge: -20~55℃ | ||
| Storage Temperature Range
|
Less than 12 months : -10~35℃ | 60±25%R.H.
at the shipment state
|
| less than 3 months: -10~45℃
|
||
| Less than 7 day : -20~65℃ | ||
| Dimensions | 557mm*440mm*178mm | Include case |
| Battery pack weight | About 110kg | Include case |
Features of 48v 200ah lithium ion battery
BMS Function Built-in 48v 200ah lithium battery
Advantages of lifepo4 48v 200ah module
Applications
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 48v lithium ion battery 200Ah?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
