5kw inverter for solar energy storage system

Product Specification:

Cycle Life:
>3000 times
Max Continuous discharge current:
175A
Peak discharge current:
320A
Warranty:
3 years
Certificate:
CE/RoHS/UN38.3/MSDS
Payment:
T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.

Inquiry Now

Product Details
Description

5kw inverter for solar energy storage system

5kw inverter

inverter

Product Description

Battery Input
Battery type	Sealed、FLood、GEL、LFP、Ternary
Rated Battery Input Voltage	48V ( Minimum Startup Voltage 44V)
Hybrid Charging Maxi mum Charging Current	80A
Battery Voltage Range	40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...)
Solar Input
Maximum PV Open-circuit Voltage	500vdc
PV Working Voltage Range	120-500Vdc
MPPT Voltage Range	120-450Vdc
Maximum PV Input Power	4400W/5200w
Maximum PV Charging Current	60A/80A
General

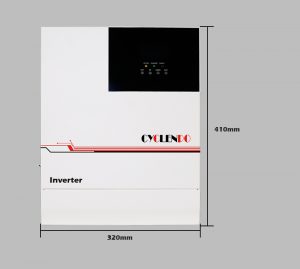

Dimensions	426mm322mm126mm
Weight (KG)	10.9
Storage Temperature Range	-25°C ~ 60°C

Performance characteristics

·Load friendly: Stable sine wave AC output via SPWM modulation
·Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program.
·Dual LFP battery activation method: PV&mains
·Uninterrupted power supply: simultaneous connection to utility grid/generator and PV
·Intelligent programming: the priority of the output from different energy sources can be set
·High energy efficiency: up to 99.9% MPPT capture efficiency
·Instant viewing of operation: the LCD panel displays data and settings ,while you can also
be viewed using the app and webpage
·Power saving: power saving mode automatically reduces power consumption at zero-load
·Efficient heat dissipation: via intelligent adjustable speed fans
·Multiple safety protection functions: short circuit protection, overload protection, reverse
polarity protection, and so on.
under-voltage and over-voltage protection and reverse polarity protection

Application

Widely used in RV, camping car, marine,boat,golf carts,sightseeing cars,solar backup,solar pv light and other lead acid replacement.

1.Where can I get the price of the 5kw inverter?

Welcome to contact the Online Services. If it's not our working time,

please click "Send Inquiry" above or "Leave a Comment" below,

We will offer you the best quote in 24 hours after we get the product specifications.

2.How can you guarantee your quality?

Normally we will send you a sample to confirm everything first.

We will make the big order exactly the same as you request.

3.What about the lead time for mass production?

It depends on your order quantity.Normally 1-2days if we have sample in stock,

5-7days for newly produced samples.10-20 day for big order.

4.What shipping method can I choose? How about the shipping time?

Express (3-7 working days), suitable for urgent time or small quantity.

Sea transportation (15-30 days), it suitable for mass production.

Air (4-7 days), from airport to airport.
