≥ 3000times
2 years
CE/RoHS/UN38.3/MSDS
avaliable
customized
Credit Cardl.TT.Escrow.Western Union Cut-off
3-7days

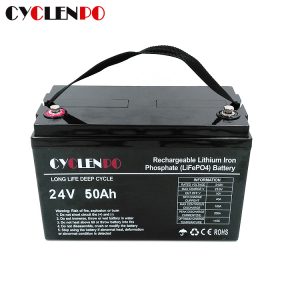

This 24v 50ah lithium ion battery adopt the latest lithium iron phosphate technology and builted in BMS overall protection. Lighter in weight but heavier on power. Ideal battery for low speed ev, robots and so on. Cyclen has a variety of 12v 24v 48v drop in replacement batteries to choose from. We offer customization services too.If you have any questions about our products, please contact us and we will work out the perfect solution for you.
| Normal performance | |||
| NO | Item | General Parameter | Remark |
| 1 | Model | 3.2Ⅴ 50Ah | Single |
| 2 | Casing material for single cell | Nickel plated steel | |
| 3 | Standard capacity(0.2C5A) | 50Ah | |
| 4 | Rated voltage | 25.6V | 3.20V(Work voltage:3.20V) |
| 5 | Max.Charge voltage | 28.8V | 3.65V(Single Ave. charge Voltage) |
| 6 | Cut-off voltage | 20V | 2.50V(Single Ave. Discharge Voltage) |
| 8 | Standard charge current | 60A | 1C |
| 9 | charging Time | About 5h | |
| 10 | Max Continuous discharge current | 50A | 1.0C |
| 11 | Peak discharge current | 100A | 2.0C10seconds |
| 12 | Battery dimension | customized | |
| 13 | (Approx.)Total weight(Approx.) | About 16kg | |
| 14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | |
| 15 | (CC/CV)
Charge method (CC/CV) |
Standard | 0℃~45℃ |
| discharge | -20℃~45℃ | ||
| storage | -20℃~45℃ | ||
Main Features
1. One stop replacement for lead acid battery
2.More than 3000 times cycle life at 80%DOD
3.Excellent discharge performance.
4.Higher safety performance
5.Maintenance free
BMS Function
1.Over Current and Over Voltage
2.Over Charge and Over Discharge
3.Thermal Protection
4.Over Load Protection
Packing and delivery
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 24v 50ah lithium ion battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
