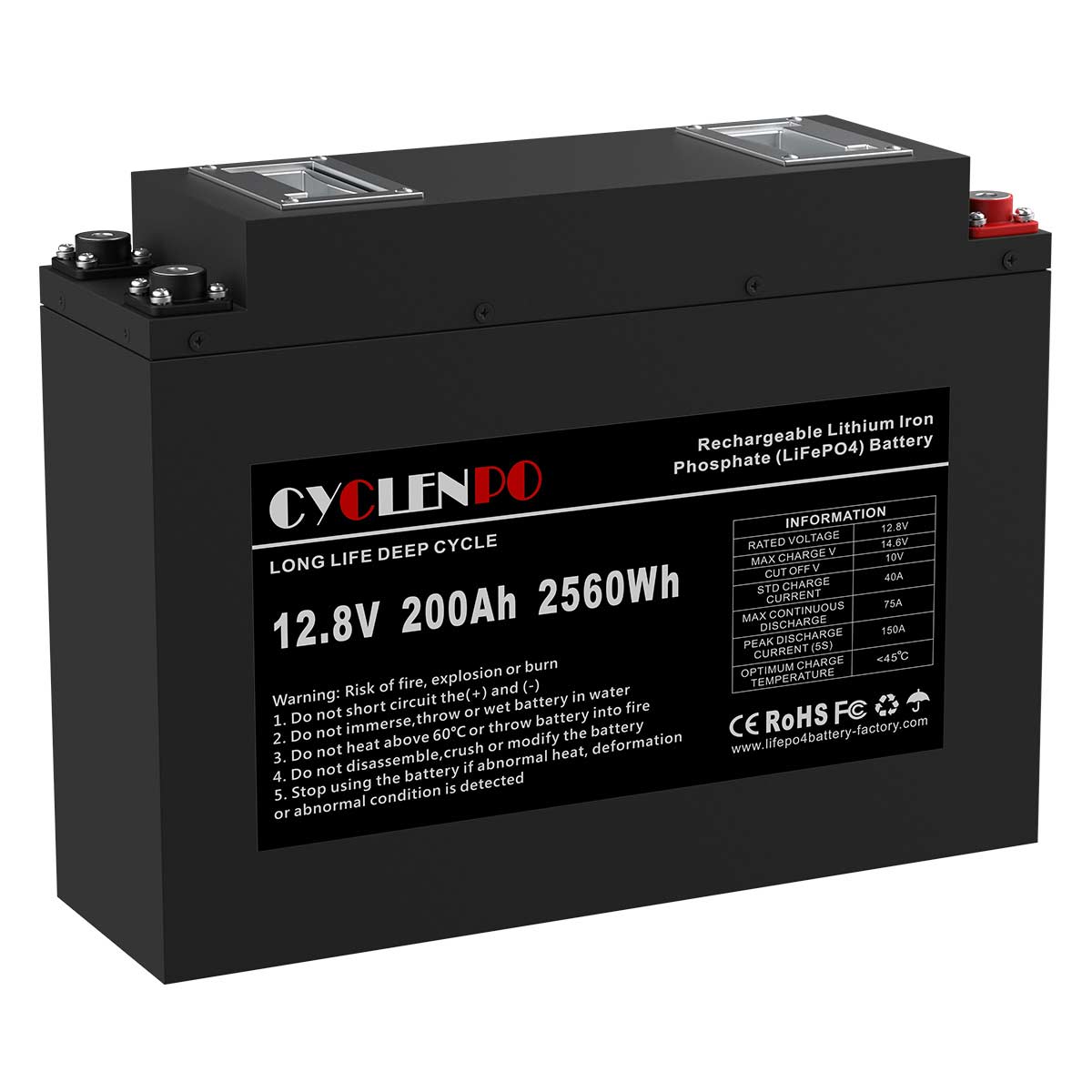

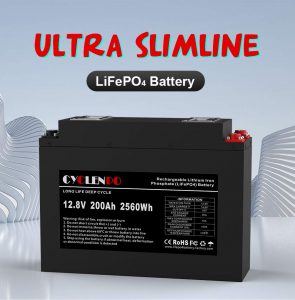

Ultra slimline 12v 200ah Lifepo4 battery for off road/vehicle
12V 200AH
12.8V

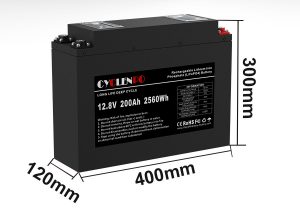

400*120*300mm
About:12kg
Standard 0℃~45℃ discharge -20℃~65℃ storage -20℃~45℃
4years
Product Specification
Lifepo4 batteries outperform lead acid batteries in many ways. They are lighter, smaller but deliver durable and stronger power. Have you ever thought of switching from traditional batteries to new technology lifepo4? Cyclen offer full series lifepo4 batteries for your deep cycle applications. Here are specification of 12v 200ah vehicle batteries module
Item
|
General Parameter
|
Remarks
|
|
1
|
Model
|
3.2V 100ah
|
Single
|
2
|
Single cell voltage
|
2.5V-3.65V
|
|
3
|
Rated capacity
|
200Ah
|
|
4
|
Rated voltage
|
12.8V
|
|
5
|
SOC range
|
20%-100%
|
|
6
|
Charge /discharge capacity efficiency
|
≥96%
|
|
7
|
Max.Charge current
|
66A
|
|
8
|
Peak discharge current
|
200 | |
9
|
Max Continuous discharge current
|
100
|
|
10
|
Battery cycle life
|
≥2000
|
|
11
|
Battery weight
|
About:21.5kg
|
|
12
|
Dimension
|
557*285*110mm
|
|
12
|
Relative ambient humidity
|
10%-90%
|
|
13
|
Waterproof Rate
|
IP67
|
|
14
|
Battery construction
|
4S2P
|
|
15
|
Battery charging/discharging ambient
temperature range
|
-20℃-60℃
|
Key Features of 12v 200ah lifepo4 vehicle batteries
1.Off-road vehicles,
2.high safety &Deep cycle,
3.limited space for special use,
4.save space can be used for refitting,
5.strong shaking resistance ,
6.harsh environment use
BMS Built 12v 200ah lithium vehicle batteries
LiFePO4 Battery Modules Cyclen Supply
Model | Rated Voltage | Nominal Capacity | Dimension | Weight |
CY-LFP-1250t | 12.8V | 50Ah | 277*223*106mm | 6.8kg |
CY-LFP-1260t | 60Ah | 277*223*106mm | 6.8kg | |
CY-LFP-12100t | 100Ah | 395*285*110mm | 11.5kg | |
CY-LFP-12120t | 120Ah | 552*240*110mm | 13kg | |
CY-LFP-12150t | 150Ah | 552*285*110mm | 14.5kg | |
CY-LFP-12200t | 200Ah | 557*317*124mm | 21.5kg | |
CY-LFP-2450t | 25.6V | 50Ah | 395*285*110mm | 11.84kg |
CY-LFP-2460t | 60Ah | 395*285*110mm | 13kg | |
CY-LFP-2460t(2) | 60Ah | 552*240*110mm | 13kg | |
CY-LFP-2480t | 80Ah | 552*285*110mm | 14.5kg | |
CY-LFP-24100 | 100Ah | 557*317*124mm | 21.5kg |
Battery Test.
Our battery packs and cells have passed different test: short circuit, drop test, over charge test and extrusion test. No explosion. No fire, no smoke, no leak.
Our Certifications
We obtained a list of certifications including ISO9001, SGS,
Productions carry UN38.3, CE, ROHS, FCC and series of MSDS certifications.
With Our Customers
We have exported our battery packs worldwide for years, and have gained customers' recognization.
Our Services
Besides the standard 12V 24V 36V 48V modules for you to choose, Cyclen can customize other battery specifications as you require.
1. Dimension , shape, case (abs/Iron)
2. Terminal (M8,M6, Anderson , Stud)
3. BMS:Discharge current and charge current etc
4. LCD screen/bluetooth app/Can bus
5. Logo, package etc
If you are interested in our products, please don't hesitate to contact us at any time.We will work out
the perfect battery solution for you.
FAQ
1. Where can I get the price of lithium battery 12v 200ah ?
The price depends on your quantities and your requirements.If you are interested in our products, Please click “Inquire Now” above to get our product catalog and price list. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.
2. What are the payment methods?
We support TT, paypal, credit card etc.
3. What's the lead time?
It depends on your order quantity.Normally 1-2 days if we have samples in stock, 5-10 days for newly produced samples. 15-20 days for big order.
4. What shipping methods can I choose, how about the shipping time?
Our sales will help you choose the most cost-effective shipping methods.
Express (3-10 working days), suitable for urgent time or small quantity.
Sea (15-30 days), it suitable for mass production.
Air (4-7 days), from airport to airport.
5. What is the package? Is that safe?
We pack the battery in safe and standard way.One battery in one carton box, and filled with EPE foam on the top and at the bottom. For heavier battery packs, we adopt wooden case. We will send you the battery photo before shipping and the shipping agent we work with are reliable and professional.
6. What's the warranty? How can I get support after I purchase the 12v 200ah vehicle battery?
Different warranty for different models. Usually 3-5 years for higher capacity packs.
1-2 years for smaller battery models. During warranty time, we can send you new ones if your battery fail to work due to its own quality problem. You can contact us about any battery problems via email, skype, whatsapp and wechat. Our sales and engineers will help you work it out.
Off-road vehicles battery: high safety,deep cycle,slimline,limited space for sepcial use,can be used for refitting,strong shaking resistance,and harsh environment.
