310 mm x 180 mm x 234 mm
3000+
About 20kg
96A
Yes with BMS & BMU
TT, Credit Card, Paypal, Western Union
This 36V lifepo4 battery series are available in a variety of capacities, to be used as the building block of a larger energy storage system by assembling in series and parallel for any voltage and capacity requirements. Prototype systems can be assembled faster than any time previously, therefore reducing project development time and decreasing non-recurring engineering expense.
|
Parameters
|
Comments
|
|
One Battery module
|
48AHr or 1843WHr (384 pcs 18650 1.5Ah cells in a 12s32p configuration.)
|
|
Size
|
310 mm x 180 mm x 234 mm
|
|
Terminals, Female- Threaded
|
M8*1.25
|
|
Weight
|
20kg
|
|
Nominal module voltage
|
38.4V
|
|
Maximum module voltage
|
43.8V
|
|
Minimum module voltage
|
30.0V
|
|
Nominal load current
|
96A max. continuous current @ 23° C
|
|
Peak load current
|
140A max for 30 sec @ 23° C
|
|
Stand charge voltage
|
38.4V
|
|
Recommend charge current
|
24A ( 0.5C)
|
|
Charge time
|
2.5h
|
|
Operating Temperature
|
Charge:0-45℃， Discharge: -20-60℃
|
|
Applications
|
Energy storage systems, AGV, Forklifts Hybrid or electric vehicle etc.
|
Key Features

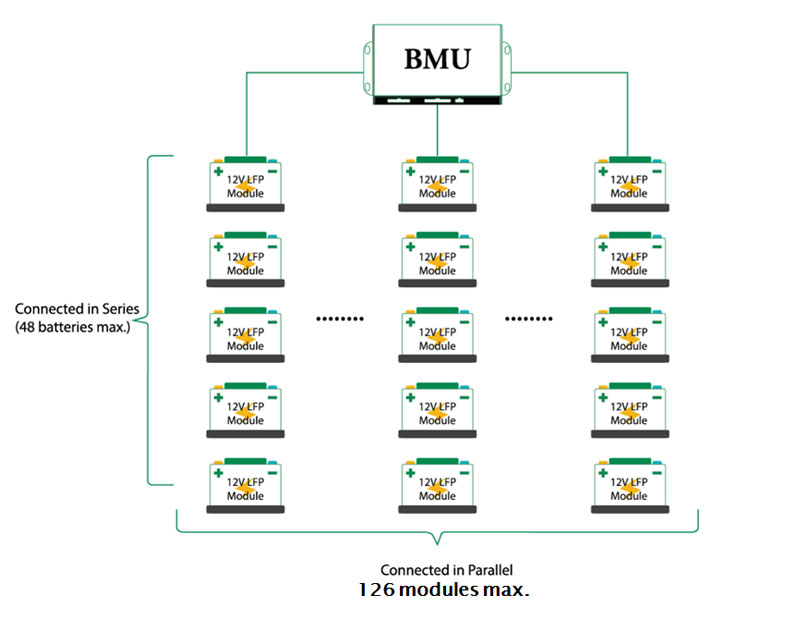

About Series & Parallel Connections

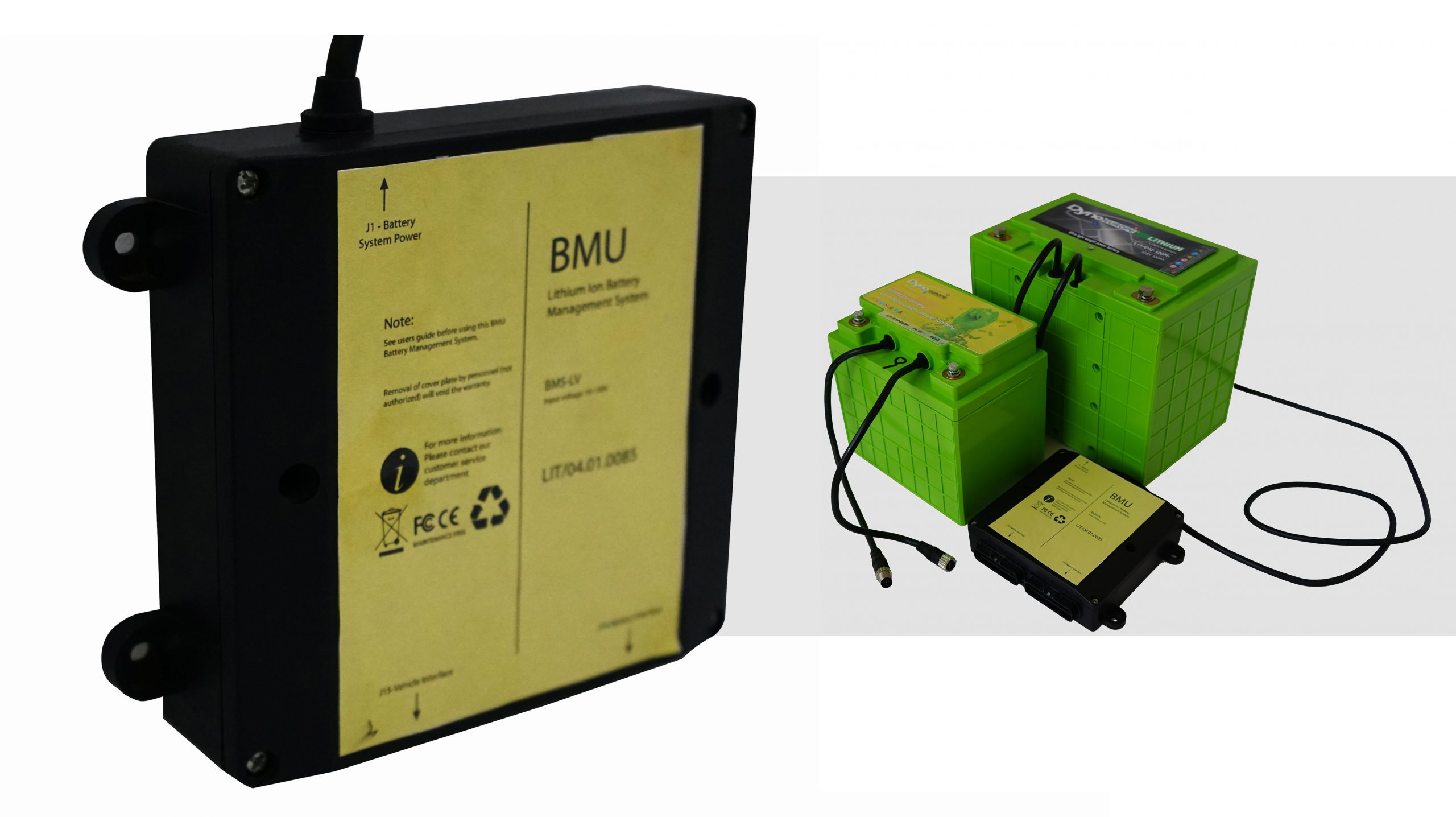

Every System Controlled By BMU
Applications of this 12v module
Cyclen is a chinese lifepo4 battery manufacturer specialized on producing high performance lithium lifepo4
battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you
are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
By Express (3-10 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
