Lifepo4
L220±1*W157±1*H160 or Customized
16kg
3000
2 years
E bike/scooters/motorcycle
|
NO.
|
Item
|
Specifications
|
remark
|
|
1
|
Model
|
CY602000
|
|
|
2
|
Type
|
lifepo4 battery cell
|
|
|
3
|
Size
|
L220±1*W157±1*H160 or Customized
|
|
|
4
|
Nominal capacity
|
30ah 0.2C Discharge
|
|
|
5
|
Nominal voltage
|
46.8V
|
|
|
6
|
Charge current and Time
|
Standard Charge : 0.5C Time: Approx 8 hours Rapid charge : 1.0C Time: Approx 2.5 hours |
|
|
7
|
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.01C
|
|
|
8
|
Max.charge current
|
15A (0.5C5rate)
|
|
|
9
|
Max.discharge current
|
60A (2.0C5rate)
|
|
|
10
|
Standard Discharge Current
|
Constant current 10 C end voltage 60V
|
|
|
11
|
Discharge cut-off voltage
|
54.6V±0.1V
|
|
|
12
|
Charge cut-off Voltage
|
65V
|
|
|
13
|
Initial Impedance
|
≤180m
|
|
|
14
|
Weight
|
Appro:16.00kg
|
|
|
15
|
Operating temperature
|
Charging: 0°C~45°C Discharging:-20°C~70°C |
|
|
16
|
Storage temperature
|
-5°C~35°C
|
|
|
17
|
Storage Humidity
|
≤75% RH
|
|
|
18
|
Appearance
|
Without scratch,distortion,contamination and leakage
|
|
|
19
|
Standard environmental condition
|
Temperature : 23±5°C Humidity : 45-75%RH Atmospheric Pressure: 86-106 Kpa |
Features

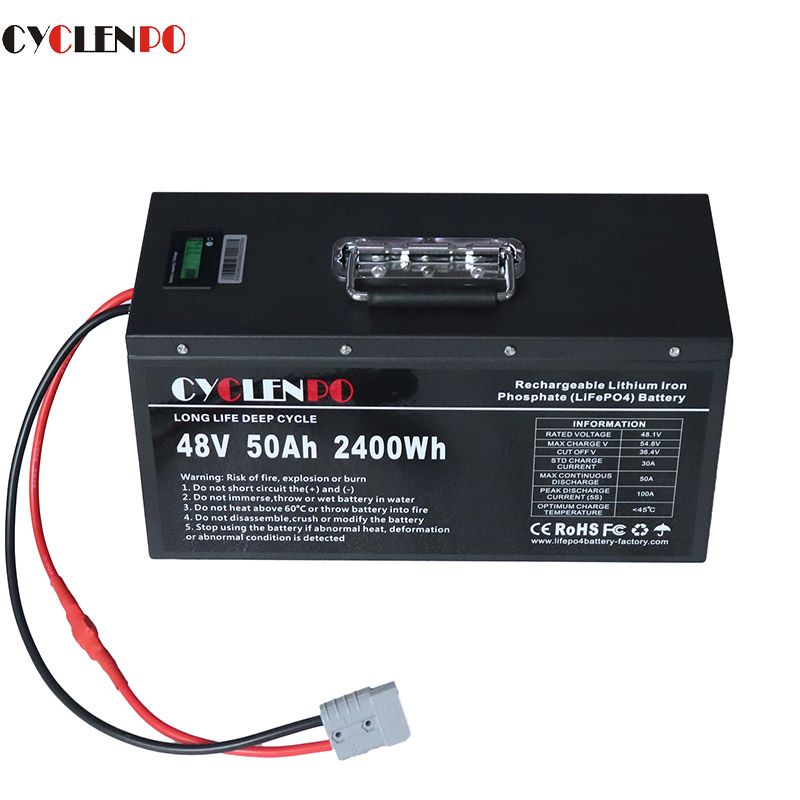

Besides the cost of lithium ion batteries, safety is another important concern for e bike or electric scooters users.This 48v 50ah lifepo4 battery is made of lithium iron phosphate material,which has higher energy density and higher safety performance. Also, built-in BMS design guarantees more on the battery safety.
Applications
Electric Bike/Electric Scooters/Motorcycle
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the Cyclenpo 48v 50ah lifepo4 battery ?
Click "Send Inquiry" above or "Leave a Message" below
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
