200±10A
300±10A
About 68kg
490*290*230mm
>3000times
3 years

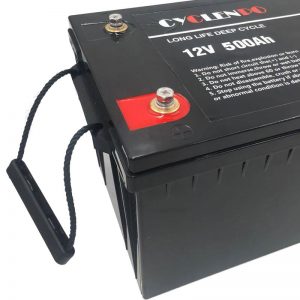

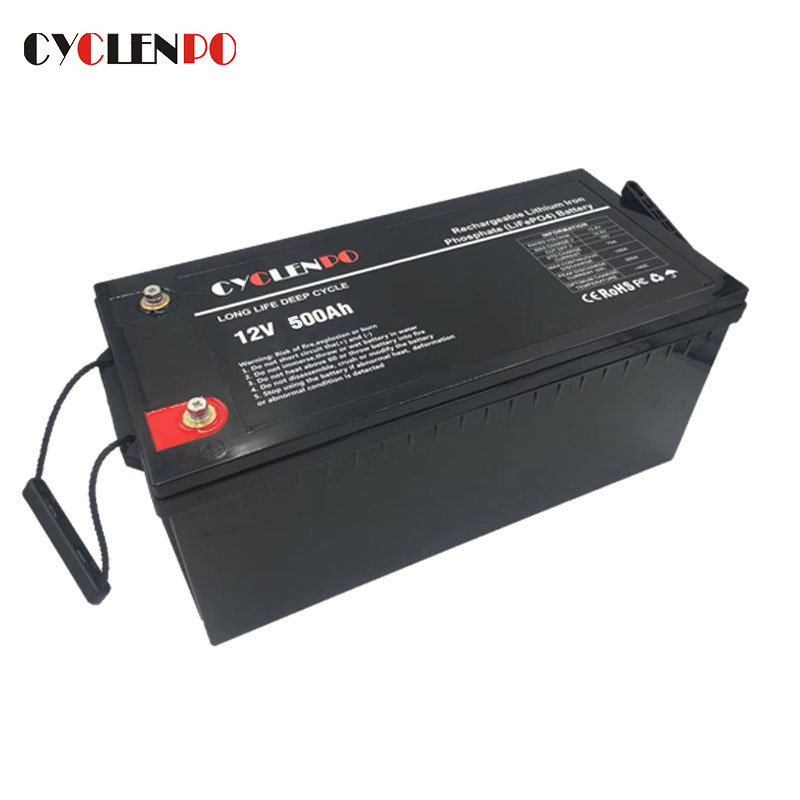

LiFePO4 technology offer high-power cell performance, which can deliver more power and extend life in lots of lead acid replacement application. If you are interested in this 12v 500ah battery, please don't hesitate to contact us at any time. In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.
|
Item
|
General Parameter
|
Remark
|
|
Standard Voltage
|
12.6V
|
|
|
Power
|
6300Wh
|
|
|
Standard capacity
|
500Ah
|
|
|
Charge cut off voltage
|
14.4±0.2V
|
|
|
Standard charge current
|
100A
|
Adjustable
|
|
Max charge current
|
200A
|
Recommended
|
|
Charge cut off current
|
10A
|
Adjustable
|
|
Discharge cut off voltage
|
9.5±0.2A
|
|
|
Standard discharge current
|
200±10A
|
Adjustable
|
|
Max Continuous discharge current
|
300±10A
|
Recommended
|
|
Impedance
|
≤25mΩ
|
|
|
Total weight（Approx.)
|
Approax 68kg
|
|
|
Dimension
|
490*290*230mm
|
|
|
Working Temperature
|
-20～55℃
|
|
|
Storage Temperature
|
-40～55℃
|
|
|
Storage Humidity
|
5%～95%RH
|
|
|
Working Humidity
|
≤85%RH
|
|
|
Positive and negative lead |
M10 red + M10 black copper pile head |
|
|
Shell Material
|
Cold rolled steel shell package
|
Features
1. Ideal drop-in replacement for lead-acid batteries
2. Longer cycle life than other lithium ion material.
3. Good high-temperature resistance.
4. Low self discharge rate.
5. Lighter weight compared with same size lead acid battery
6. Good safety performance and e-co friendly.
7. Bluetooth and heated function can be added.
BMS Function
1. Over charged protection
2. Over discharged protection
3. Thermal protection
4. Over load protection
6. Over current protection
Application
RV, Golf Cart, Boat, Yacht, Home Solar Storage, Solar PV Lighting, Electric Vehicles, HEV, Industrial Equipment, and other deep cycle applications
Packing and delivery
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of the 12v 500ah lithium ion battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
