3.2V 100AH
12.8V
720*270*60mm
About:16.8kg
Standard 0℃～45℃ discharge -20℃～65℃ storage -20℃～45℃
30A
3years

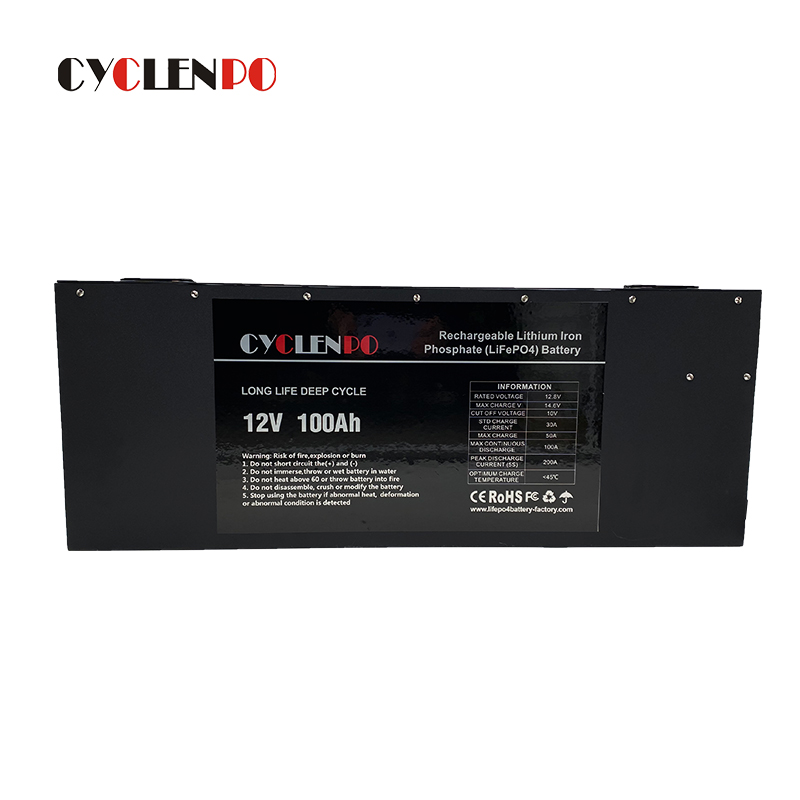

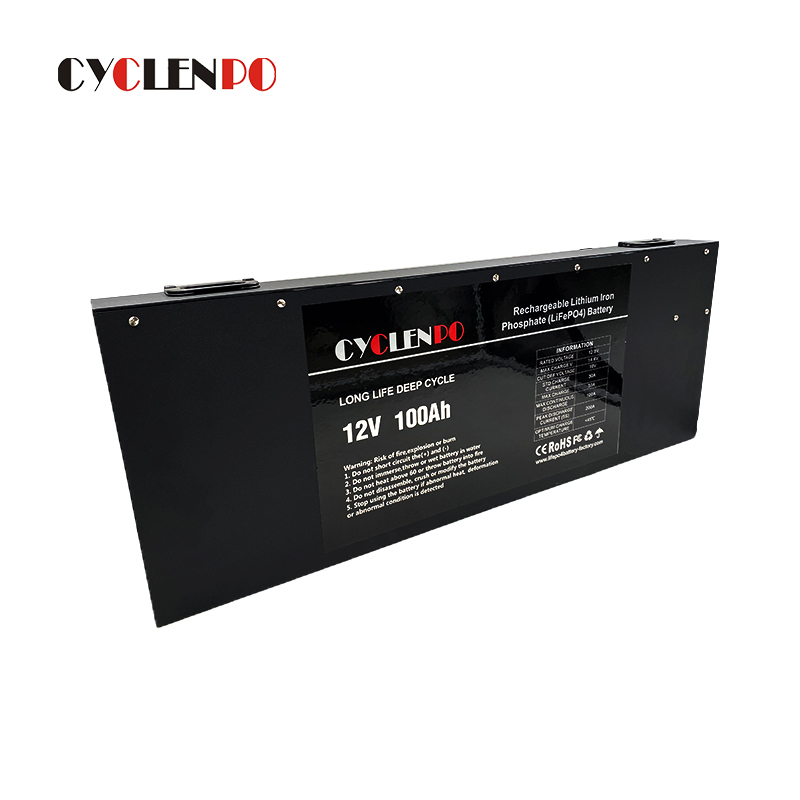

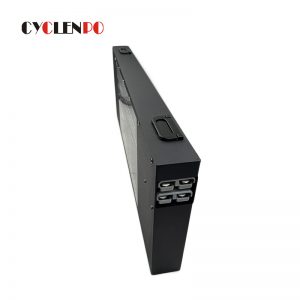

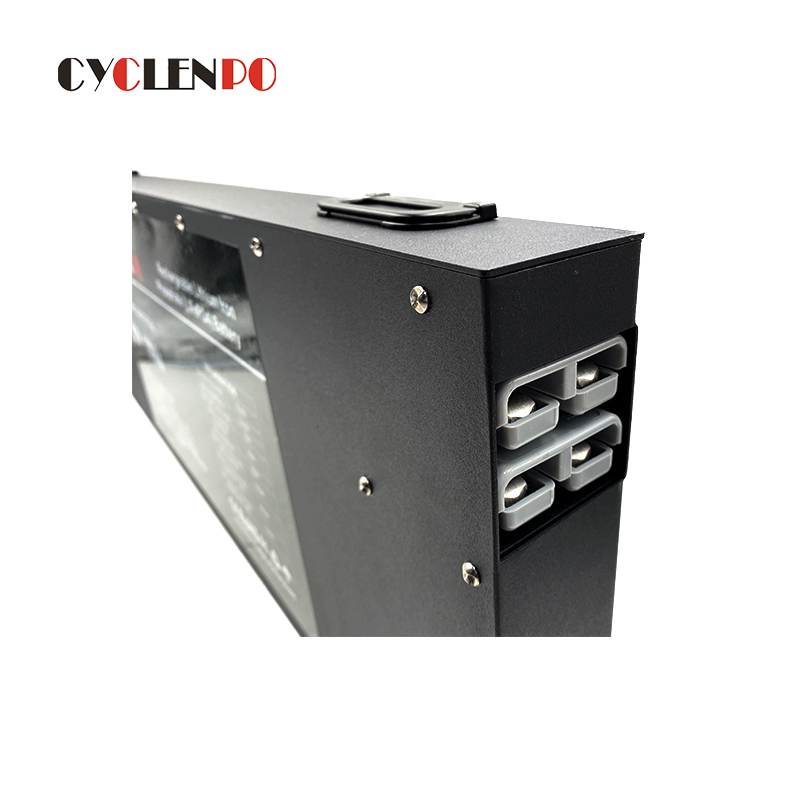

Lithium Ion battery 12v 100ah for off road /vehicle
Lithium Ion battery 12v 100ah Production Specification
|
Item
|
General Parameter
|
Remarks
|
|
|
1
|
Model
|
3.2V 100AH
|
Single
|
|
2
|
Casing material for single cell
|
Nickel plated steel
|
|
|
3
|
Standard capacity（0.3C 30 A
|
100Ah
|
|
|
4
|
Rated voltage
|
12.8V
|
Work voltage：3.20V
|
|
5
|
Max.Charge voltage
|
14.4V
|
Single Ave. charge Voltage
|
|
6
|
Cut-off voltage
|
10V
|
Single Ave. Discharge Voltage
|
|
7
|
Standard charge current
|
30A
|
0.3C
|
|
8
|
Charging Time
|
About 3.4h
|
|
|
9
|
Max Continuous discharge current
|
100A
|
1C
|
|
10
|
Peak discharge current
|
200A
|
2C（2 秒）2seconds
|
|
11
|
Battery dimension
|
720*270*60
|
L*W*T(mm), Not including terminals (20mm)
|
|
12
|
Total weight（Approx.)
|
About:16.8kg
|
|
|
13
|
Impedance（Max, at 1000Hz.）
|
≤ 10mΩ
|
|
|
14
|
Charge method (CC/CV)
|
Standard 0℃～45℃
discharge -20℃～65℃
storage -20℃～45℃
|
Key Features of Lithium Ion batteries 12v 100ah
BMS Built in Lithium Ion batteries 12v 100ah
LiFePO4 Battery Modules Cyclen Supply
| Model | Rated Voltage | Nominal Capacity | Dimension | Weight |
| CY-LFP-1250 |
12.8V
|
50Ah | 195*165*175mm | 7kg |
| CY-LFP-12100 | 100Ah | 328*171*215mm | 12kg | |
| CY-LFP-12120 | 120Ah | 328*171*215mm | 15kg | |
| CY-LFP-12150 | 150Ah | 405*175*240mm | 20kg | |
| CY-LFP-12200 | 200Ah | 520*238*218mm | 22.5kg | |
| CY-LFP-12240 | 240Ah | 495*268*219mm | 27kg | |
| CY-LFP-12250 | 250Ah | 495*268*219mm | 28kg | |
| CY-LFP-12300 | 300Ah | 520*267*218 mm | 33kg | |
| CY-LFP-2450 |
25.6V
|
50Ah | 328*171*215mm | 13kg |
| CY-LFP-24100 | 100Ah | 520*267*218mm | 23kg | |
| CY-LFP-24120 | 120Ah | 520*267*218mm | 30kg | |
| CY-LFP-24150 | 150Ah | 495*160*295mm | 35kg | |
| CY-LFP-24200 | 200Ah | 410*370*200mm | 43kg | |
| CY-LFP-3650 | 38.4V |
50Ah | 483*170*240mm | 22kg |
| CY-LFP-36100 | 100Ah | 520*267*218 mm | 33kg |
The products we display don't represent the limitation of us.We can customize other battery specifications like:
and etc. If you are interested in our products, please don't hesitate to contact us at any time.We will work out
the perfect battery solution for you.
Cyclen is a chinese lithium ion batteries manufacturer specialized on producing high performance lithium lifepo4
battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you
are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
By Express (3-10 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
