3.2V
302Ah
≥4000cycles
0.5C~1C
174mm*72mm*207.2mm
1 Years
Credit Card.Paypal.TT.Escrow.Western Union

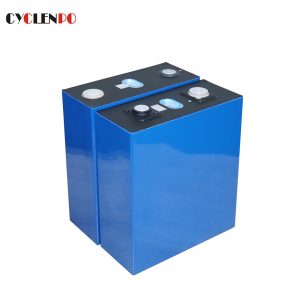

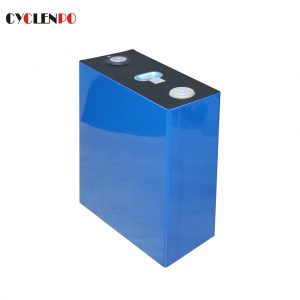

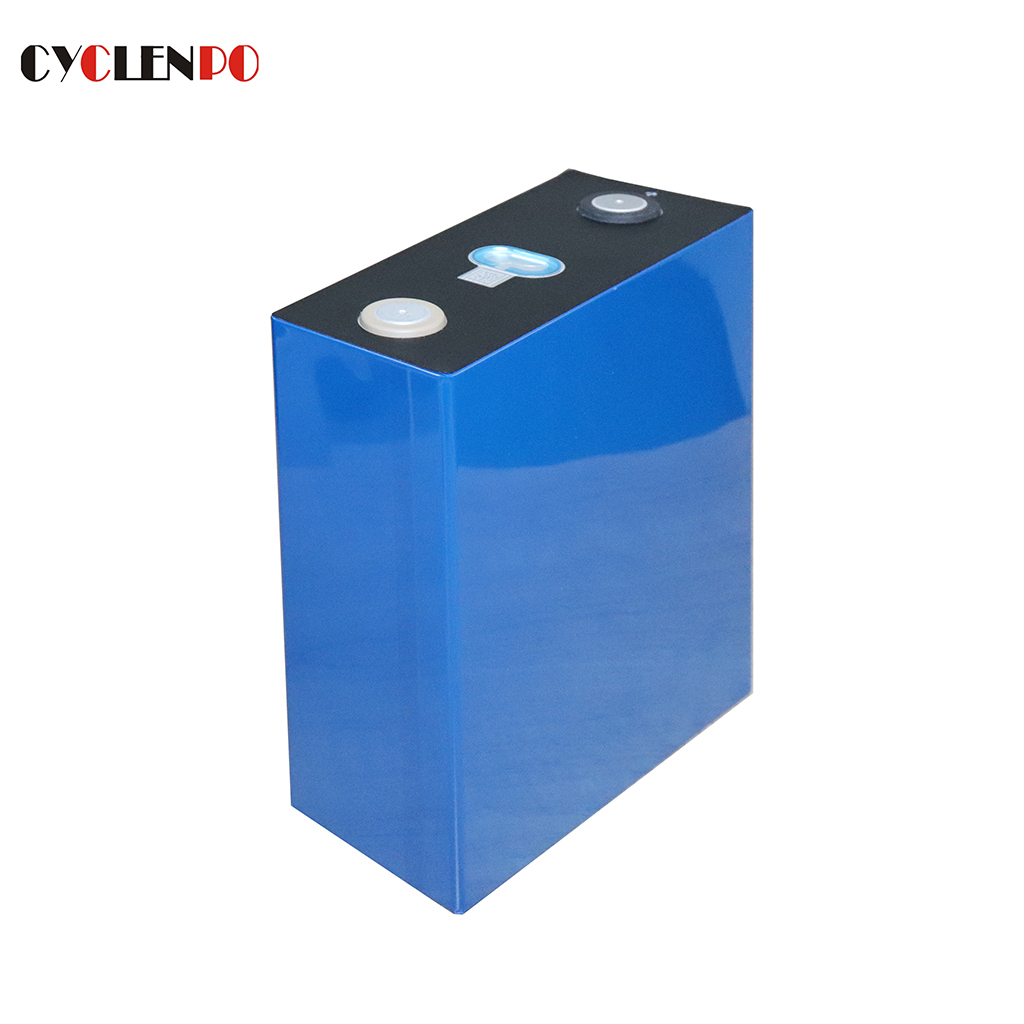

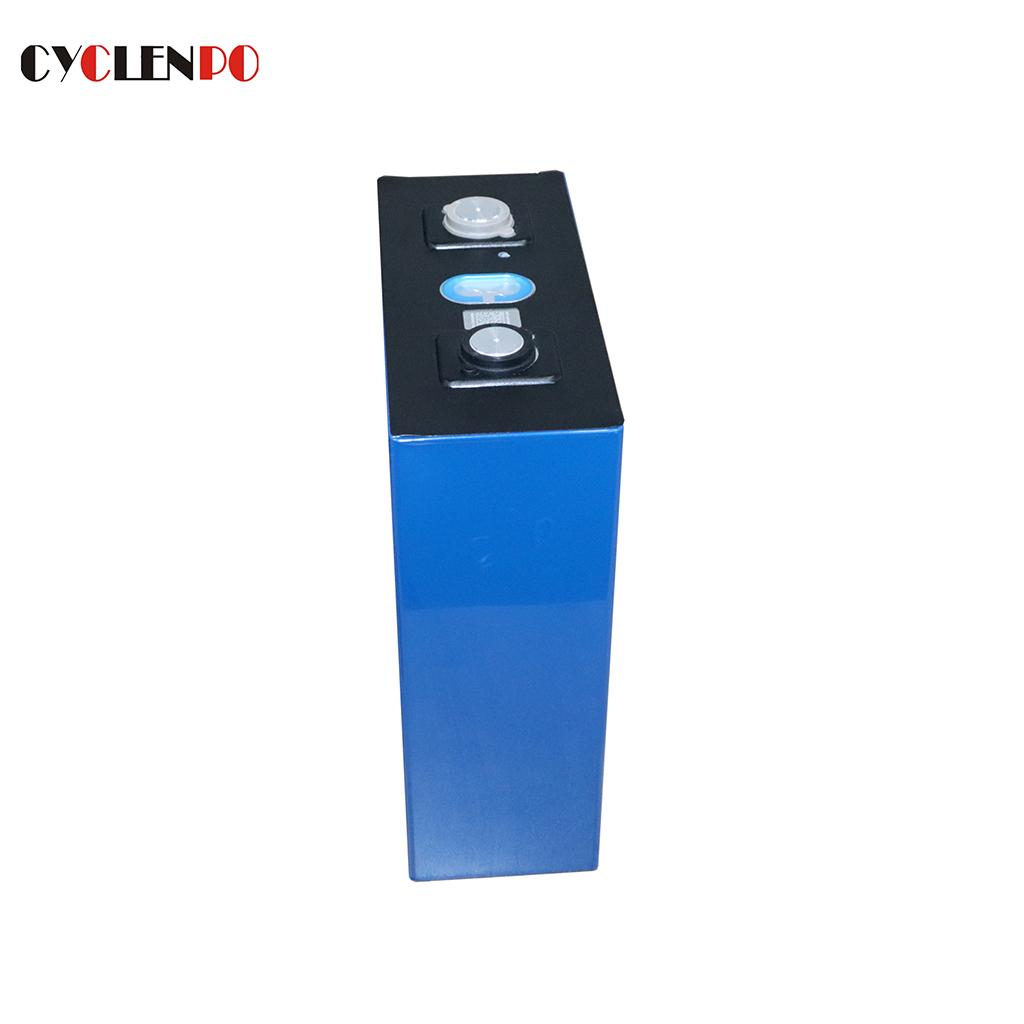

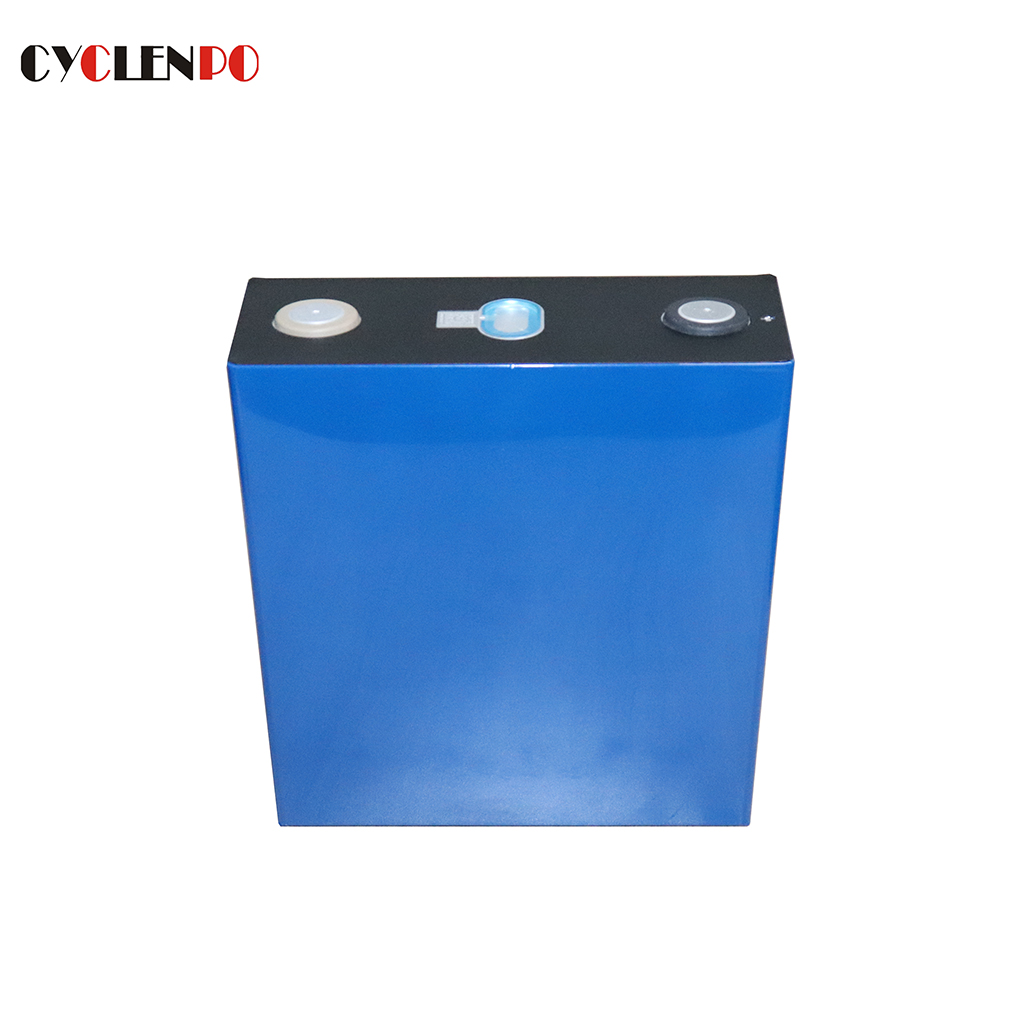

Prismatic battery cells are designed thiner and lighter. This make them easy to connect together to creat higher power battery packs and conserve space.If the battery design and space are your concerns,then prismtic cells are greater choice than cylindrical ones. Click to see other models of 3.2v prismatic cells if this is not what you want.
|
Model
|
CY-3.2V 302Ah
|
|
Impedance
|
0.18±0.05mΩ |
|
Nominal Voltage
|
3.2V |
|
Nominal Capacity
|
302Ah |
|
Standard Charge Voltage
|
3.65V
|
|
Standard Charge Current
|
0.5C
|
|
Standard Discharge Current
|
0.5C
|
|
Max.discharge current
|
1C
|
|
Charge Temperature
|
0 - 65 ℃
|
|
Discharge Temperature
|
-35 - 65 ℃
|
|
Storage Temperature
|
0–65 ℃
|
|

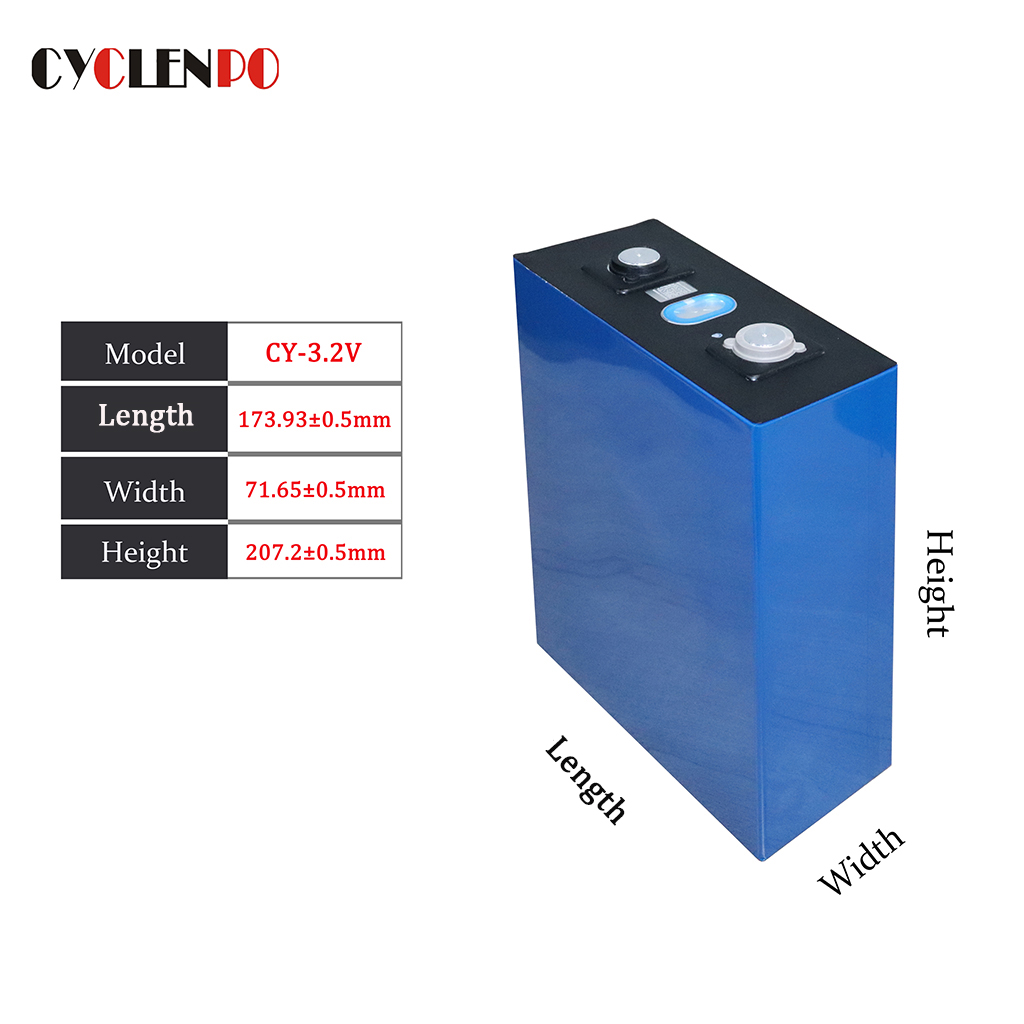

Dimension
|
174*72*207.2mm |
|
Cycle Life
|
>4000
|
battery cells 3.2v Compared With Cylindrical
1. Higher safety performance.
2. More cycle lifes >4000 times.
3. Higher energy, Can Deliver higher discharge current.
4. Easier composed ways.
5. Good consistency.
Applications of LFP Prismatic Cells
This battery module is suitable for many new energy vehicles ( pure electric car, pure electric sightseeing car,pure electric forklift car, pure electric special vehicles ), solar and DIY your own power packs
Cyclen is a chinese lifepo4 battery manufacturer specialized on producing high performance lithium lifepo4
battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you
are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.
Battery price depends on your quantity and specifications. Welcome to contact the Online Services.
If it's not our working time, please "Leave a Comment" below about your requirement.
We will offer you the best quote in 24 hours after we get the product specifications such as voltage
capacity application etc.
It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly
produced samples. 10-20 days for big order.
Our sales will help you choose the most cost-effective shipping methods.
By Express (3-10 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.
For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe
transportation. We will send you pictures of the packaging before battery shippment.
Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,
skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical
guide.
