IFR 3.2V 20Ah
600A
500CCA
260±1*175±1*200±1mm
8.0kg
CE MSDS ROHS FCC
This lithium cranking battery series are based on lifepo4 technology. Compared with lead acid starter batteries, they have very high discharge rate with a smaller capacity and lighter weight.They also feature BMS inside for the safest and long-life performance. They have lower self-discharge rate so they can still provide enough cranking power when sitting for months.
|
NO
|
Item
|
General Parameter
|
Remark
|
|
1
|
Model
|
IFR 3.2V 20AH
|
Single
|
|
2
|
Casing material for single cell
|
Polymer aluminum foil
|
|
|
3
|
Standard capacity(0.2C3A)
|
60Ah
|
|
|
5
|
Rated voltage
|
12.8V
|
3.20V (Work voltage:3.20V)
|
|
6
|
Max.Charge voltage
|
14.4V
|
3.60V(Single Ave. charge Voltage)
|
|
7
|
Cut-off voltage
|
10.5V
|
2.63V(Single Ave. Discharge Voltage)
|
|
8
|
Standard charge current
|
30A
|
0.5C (can be adjusted )
|
|
9
|
Charging Time
|
About 2.5h
|
|
|
10
|
Max Continuous discharge current
|
100A
|
1.67C
|
|
11
|
Maximum cranking Amps
|
600 CCA
|
10C 1seconds
|
|
12
|
Battery dimension
|
260±1*175±1*200±1mm
|
|
|
13
|
(Approx.)Total weight
|
About 8.0kg
|
|
|
14
|
(Max, at 1000Hz.)Impedance
|
≤ 6mΩ
|
|
|
15
|
High Cold Cranking Amps
|
500 CCA
|
-20℃
|
|
16
|
Shell material
|
ABS
|
|
|
17
|
(CC/CV) Charge method |
Standard
|
-20℃～55℃
|
|
discharge
|
-20℃～65℃
|
||
|
storage
|
-40℃～55℃
|

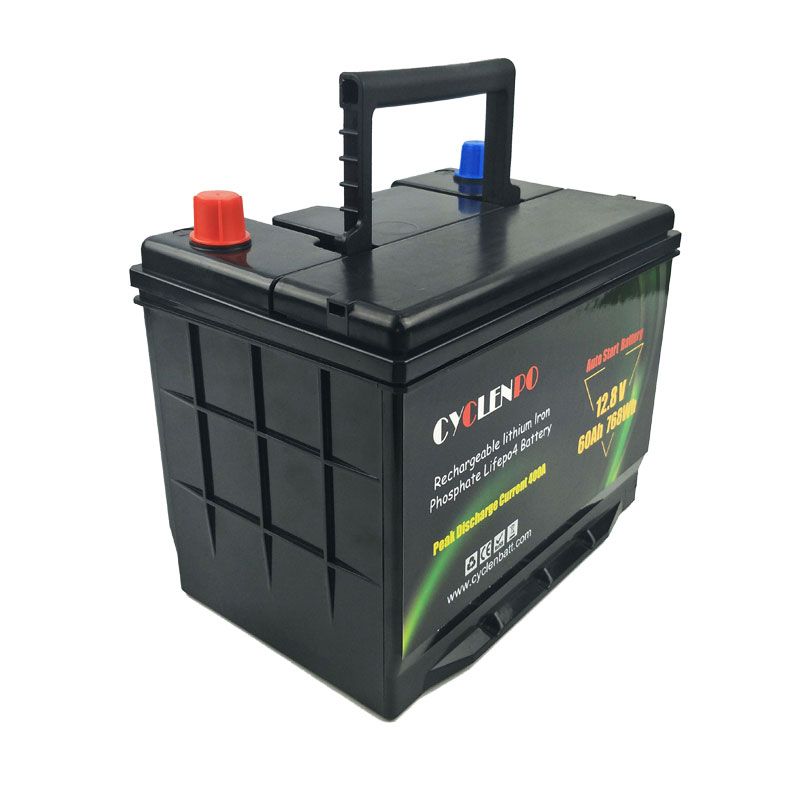

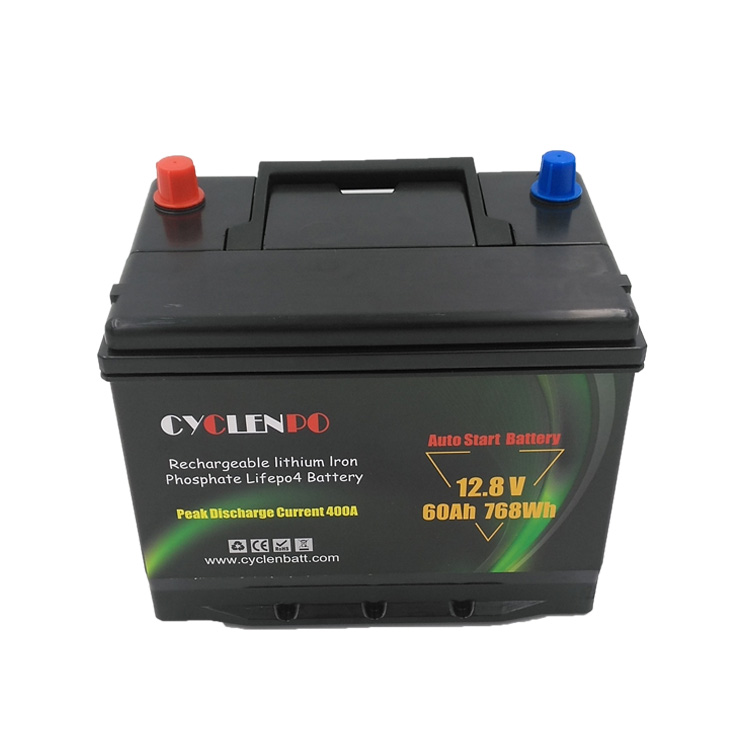

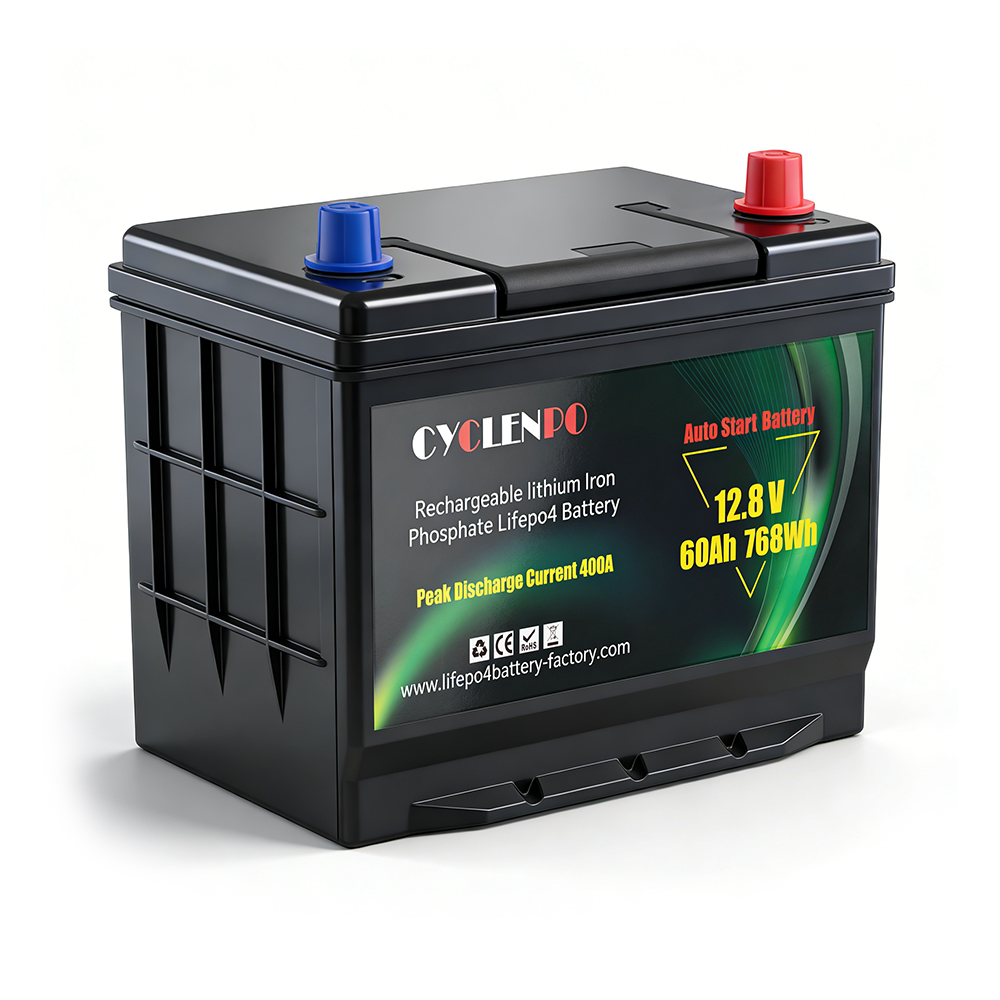

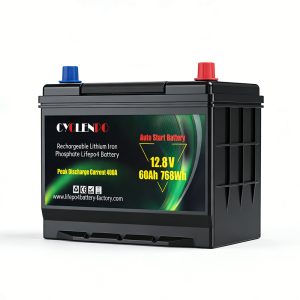

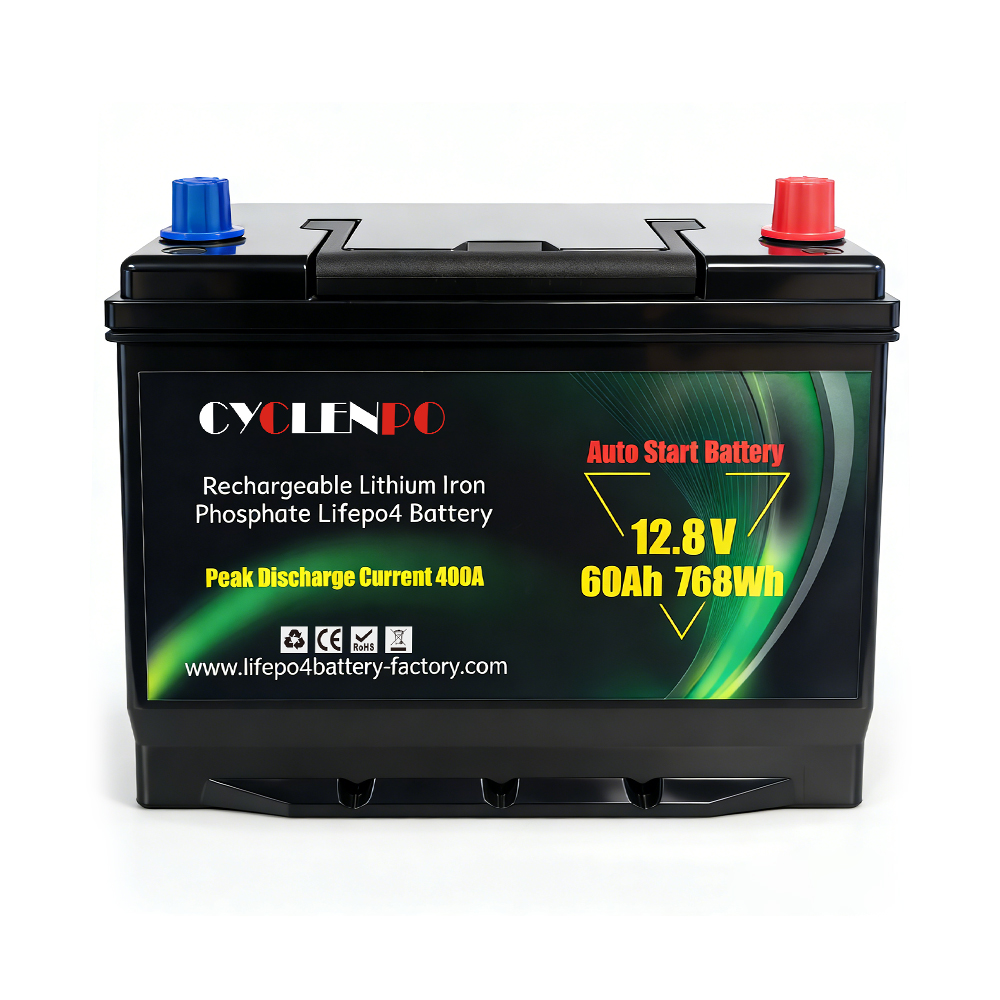

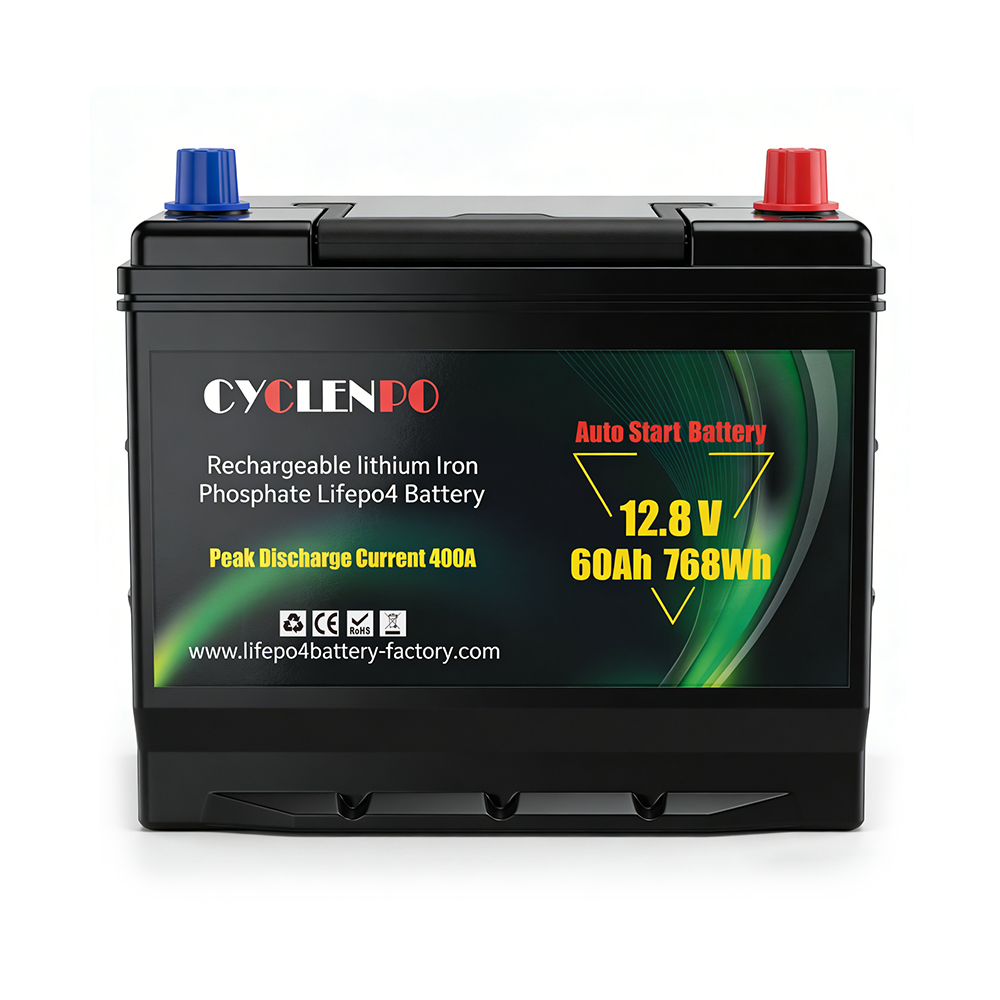

12v 60ah starter battery
12v 60ah starter battery for car
Higher safety performance. BMS provide over current, over voltage, over temperature, short circuit protection. No fire hazard.
LiFePO4 Prismatic Cells
About 1/3 lighter in weight compared with lead acid batteries. More than 3000 cycle life and start your car more times repeatable
Peak 1000CCA Starting Power
Quick start-off ability.Capable of high current (we offer 300CCA-1000CCA ) to meet different vehicles' need.
After testing, within 5 minutes after starting, the battery charging current is close to 0A, and the idling fuel consumption of the car is reduced by more than 10%.
1.Where can I get the price of the 12v 60ah lithium cranking battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 12 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
