Support Series Parallel Battery, Lifepo4 Battery 12V, Factory Direct Supply

series and parallel battery
  • series and parallel battery
  • 12v 126ah module
  • EV battery 12v
  • ev lithium lifepo4 battery
  • lifepo4 battery suppliers
  • series and parallel battery

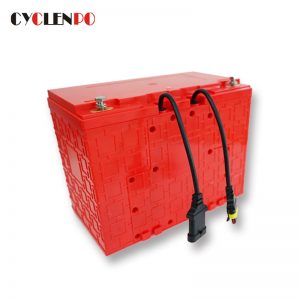

Series and Parallel LiFePO4 Battery Pack 12V 126Ah With BMS


Product Specification:

  • Dimension :

    260 mm x 172 mm x 225 mm

  • Cycle Life:

    3000+

  • Weight :

    About 15kg

  • Nominal load current:

    150A

  • Protection :

    Yes with BMS & BMU

  • Payment:

    TT, Credit Card, Paypal, Western Union

Inquiry Now

Series and Parallel LiFePO4 Battery Pack 12V 126Ah With BMS

This 12V lifepo4 battery series are available in a variety of capacities, to be used as the building block of a larger energy storage system by assembling in series and parallel for any voltage and capacity requirements. Prototype systems can be assembled faster than any time previously, therefore reducing project development time and decreasing non-recurring engineering expense.

Parameters
Comments
One Battery module
126AHr or 1612WHr (316 pcs 18650 1.5Ah cells in a 4s79p configuration.)
Size
260 mm x 172 mm x 225 mm
Terminals, Female- Threaded
M8*1.25
Weight
15kg
Nominal module voltage
12.8V
Maximum module voltage
14.6V
Minimum module voltage
10.0V
Nominal load current
150A max. continuous current @ 23° C
Peak load current
300A max for 30 sec @ 23° C
Stand charge voltage
14.6V
Recommend charge current
63A ( 0.5C)
Charge time
2.5h
Operating Temperature
Charge:0-45℃, Discharge: -20-60℃
Applications
Energy storage systems, AGV,  Forklifts

Hybrid or electric vehicle etc.

Key Features

  • High safety: LFP cells composed.
  • Excellent lifespan: 4000+ cycle life.
  • Compact size and lighter weight.
  • Temperature tolerant.
  • BMS overall protections.
  • RS485 communication function.

About Series & Parallel Connections

  • Max 48 batteries in series.
  • Max 126 batteries in parallel.
  • Mix series and parallel available.
  • Easy installation, free maintenance, easy to expand.

bmu controlled

Every System Controlled By BMU

  • Max 48 batteries in series.
  • Max 126 batteries in parallel.
  • Mix series and parallel available.
  • Easy installation, free maintenance, easy to expand.

Applications of this 12v module

portable solar power station 12v

     Cyclen is a chinese lifepo4 battery manufacturer specialized on producing high performance lithium lifepo4

     battery packs and custom battery solutions.We have exported our battery packs worldwide for years.If you

     are looking for lead acid/gel/agm replacement battery, we can be your reliable supplier.

  • OEM&ODM manufacturer with various design and one-stop battery solution.
  • Reliable quality; Factory direct price; Complete production lines.
  • Timely and professional pre-sales service and after-sales service. 100% test before shipment;
  • Solid package; Fast delivery and stable shipment.

portable solar power station 12v

portable solar power station 12v

  • Where can I get the price of the 12v series&parallel battery module?

         Battery price depends on your quantity and specifications. Welcome to contact the Online Services.

         If it's not our working time, please "Leave a Comment" below about your requirement.

         We will offer you the best quote in 24 hours after we get the product specifications  such as voltage

         capacity application etc.

  • What about the lead time for mass production?

         It depends on your order quantity.Normally 1-2days if we have sample in stock, 5-7days for newly

         produced samples. 10-20 days for big order.

  • What shipping method can I choose? How about the shipping time?

        Our sales will help you choose the most cost-effective shipping methods.

        By Express (3-10 working days), suitable for urgent time or small quantity.

        By Sea (15-30 days), it suitable for mass production.

        By Air (4-7 days), from airport to airport.

  • What is the package? Is that safe?

        We pack one battery in one carton box, and filled with EPE foam on the top and at the bottom.

        For heavier battery, we adopt wooden case.And our shipping agent has full experience in safe

        transportation. We will send you pictures of the packaging before battery shippment.

  • What's the warranty? How can I get support after purchasing batteries?

        Usually 2-3 years warranty (Depends on different battery model) .And we offer online support by email,

        skype, whatsapp or wechat etc. If you meet problems, we have our own engineers to provide technical

        guide.
