LFP Prismatic Cells
CYP-51100
752*520*110 mm
50kg
5KWH
≥ 6000 times

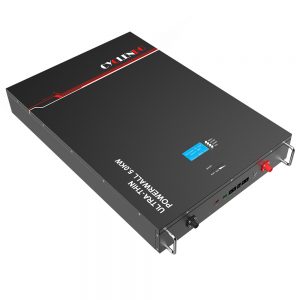

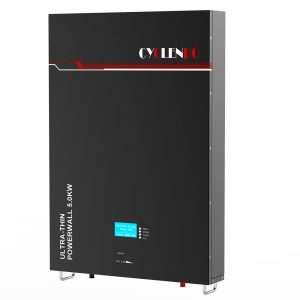

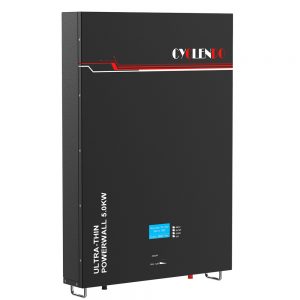

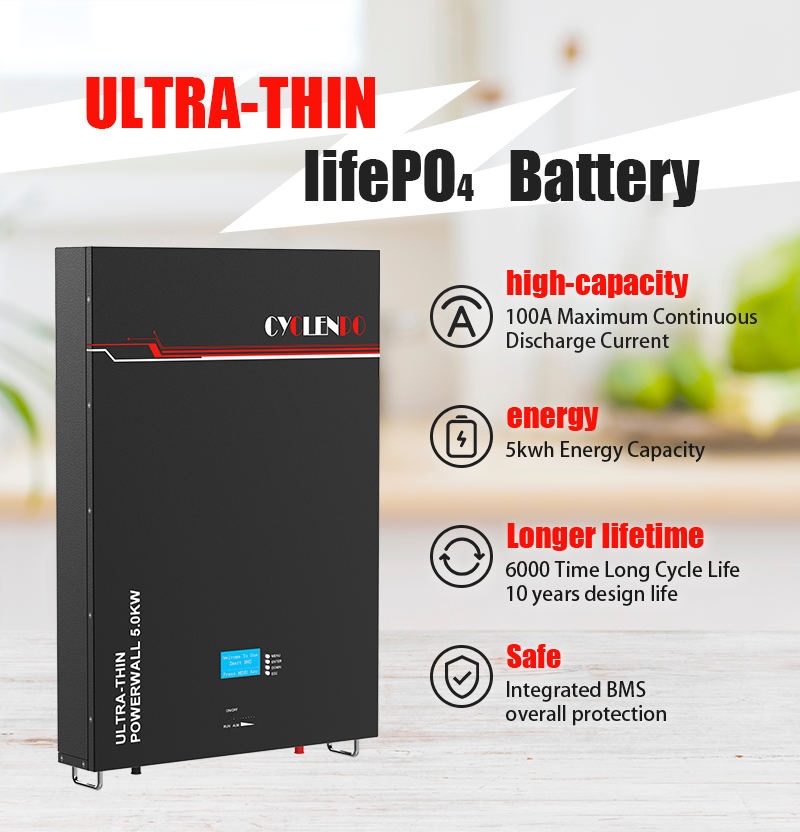

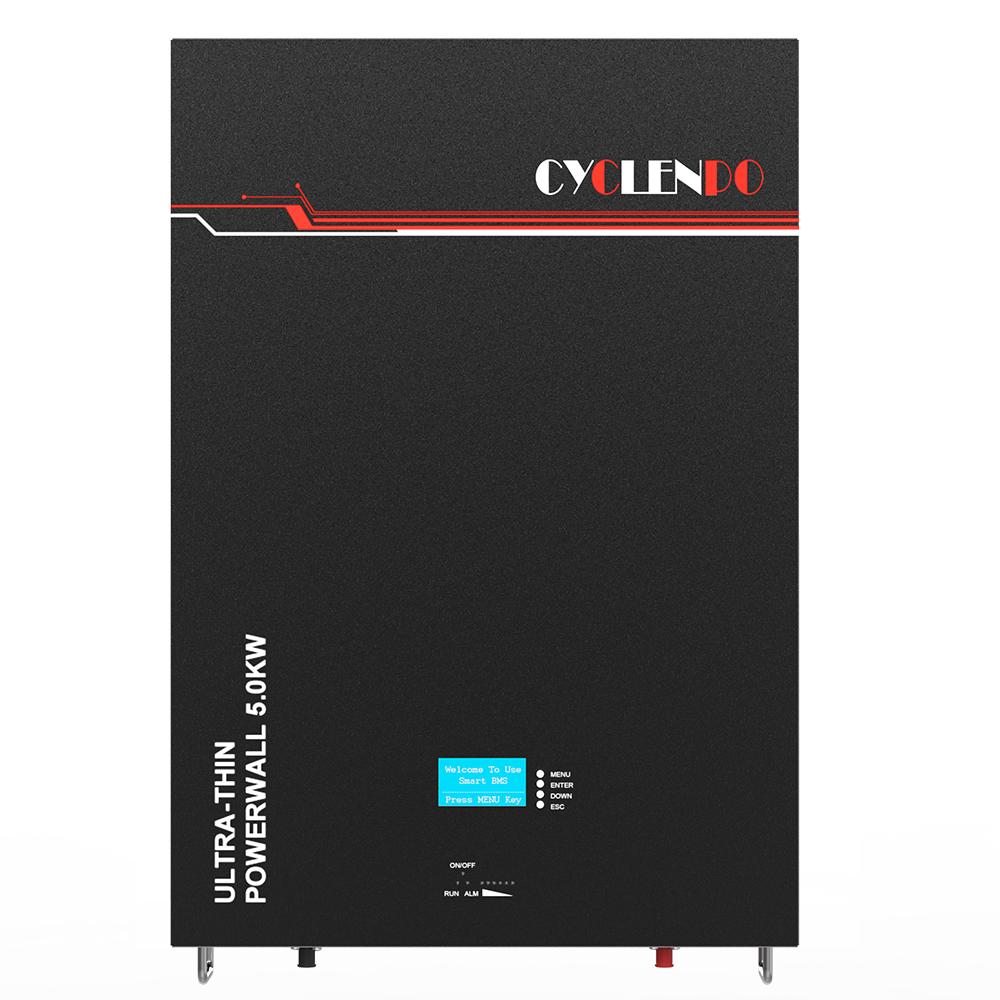

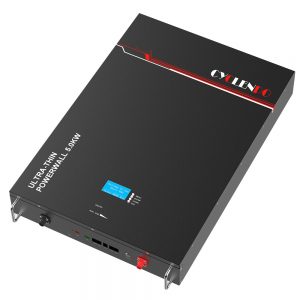

Ultra thin 48v 100ah powerwall battery is a high performing storage battery developed to provide house sustainable energy. It stores extra electricity produced by sun in daytime,while keep home powered at night or electricity failure time.For saving electricity bills and backup emergency power, this lithium house battery can be a good choice. Check other models of our storage batteries.
|
Item
|
General Parameter
|
Remark
|
|
Combination method
|
16S1P
|
|
|
Rated Capacity
|
100Ah
|
Standard discharge after Standard charge
|
|
Factory Voltage
|
51V-53V(40-60%)
|
Mean Operation Voltage
|
|
Discharge Cut-off Voltage
|
40-44V
|
|
|
Charging Voltage
|
56-58V
|
|
|
Internal Impedance
|
≤60mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Standard charge current
|
50A
|
Charge time : Approx 6 h
|
|
Limiting charge current
|
20A
|
|
|
Standard discharge current
|
20A |
|
|
Max Continuous Charge Current
|
100A
|
|
|
Max Continuous Discharge Current
|
100A
|
100A when 0ºC＞T≥-10ºC
50A when -10ºC＞T≥-20ºC |
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell |
|
Discharge: -20~55℃
|
||
|
Storage Temperature Range
|
-10~35℃
|
Less than 12 months
|
|
-10~45℃
|
Less than 3 months
|
|
|
-20~65℃
|
Less than 7 day
|
|
|
Dimensions
|
520*752*110 mm
|
|
|
Weight
|
50kg
|
Benefits of Ultra thin 48v 100ah wall mounted battery for 48v solar system

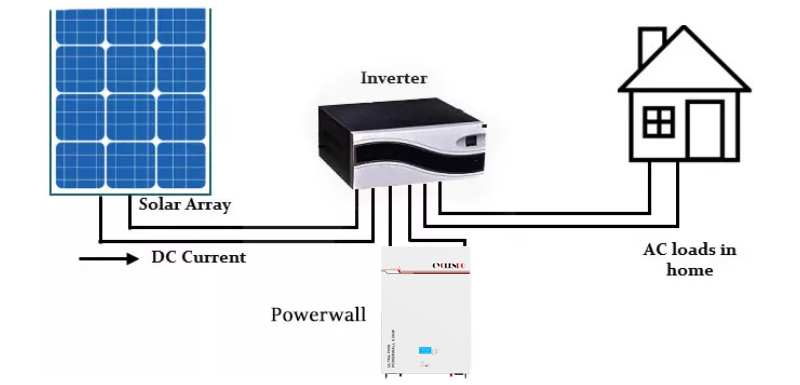

(1) Making full use of clean energy.
The output power of solar energy and wind energy can be effectively smoothed. The impact to the power grid and users, which is consulted by intermittency of new energy can be effectively overcome.

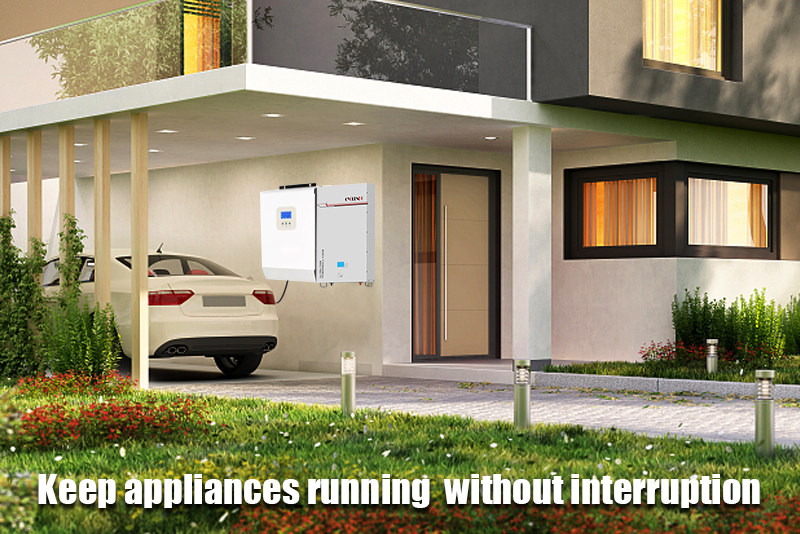

(2) Providing uninterrupted power
Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood.

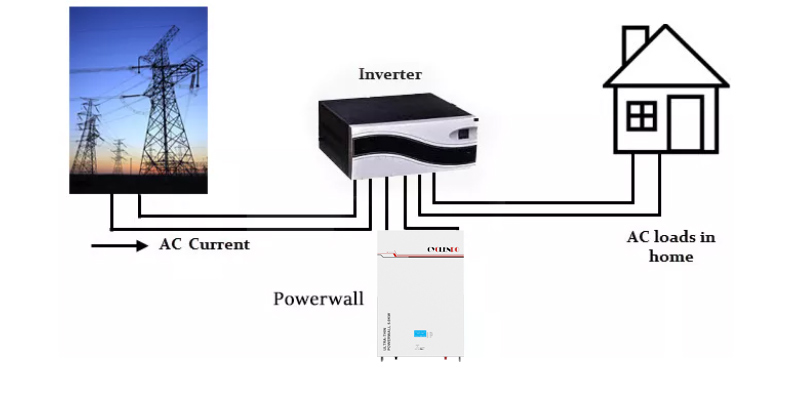

(3) Saving electricity for users by peak-shift.
Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
Lithium Ion Powerwall Series
|
SERIES
|
Model
|
Weight
|
Energy
|
Dimension
|
Discharge Current (max)
|
|
15S
|
48V 100AH
|
≈ 56KG
|
4.8KWh
|
485*650*180mm
|
100A
|
|
48V 150AH
|
≈ 75KG
|
7.2KWh
|
|||
|
48V 200AH
|
≈ 95KG
|
9.6KWh
|
|||
|
16S
|
51.2V 100AH
|
≈ 58KG
|
5.12KWh
|
||
|
51.2V 150AH
|
≈ 78KG
|
7.68KWh
|
|||
|
51.2V 200AH
|
≈ 100KG
|
10.24KWh
|
1.OEM&ODM manufacturer with various design and one-stop battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
