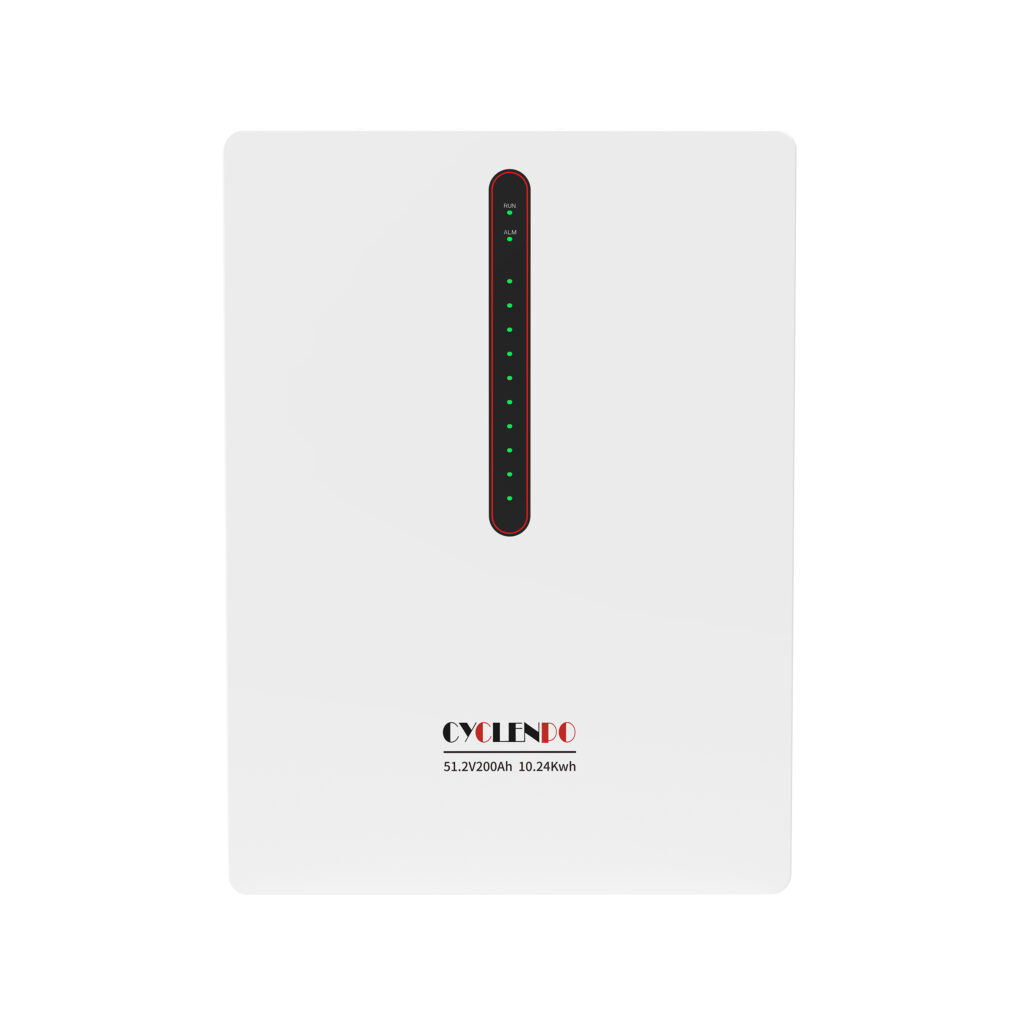

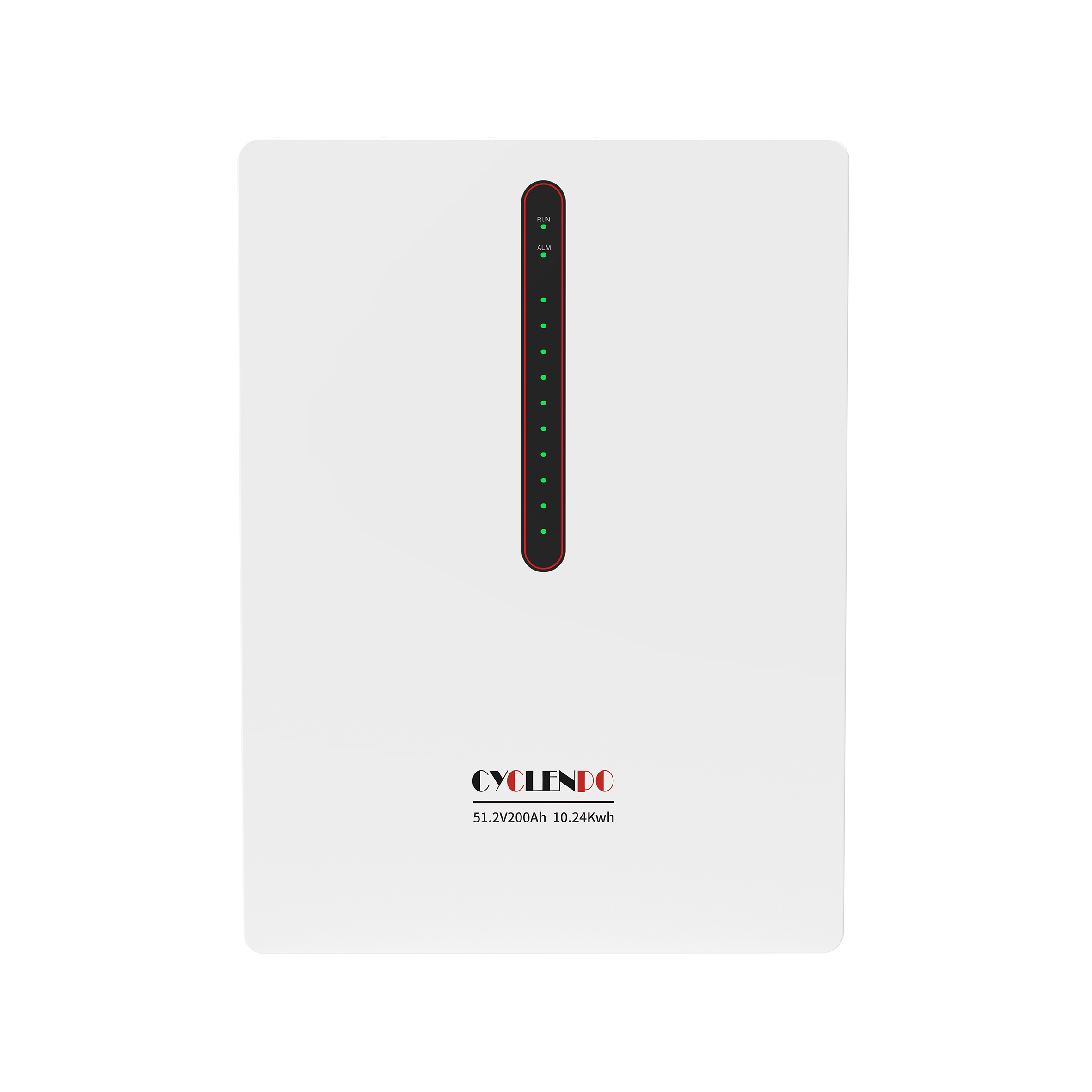

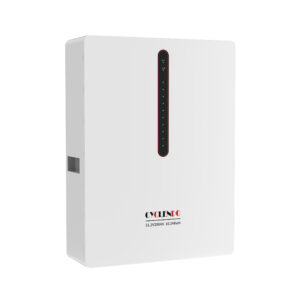

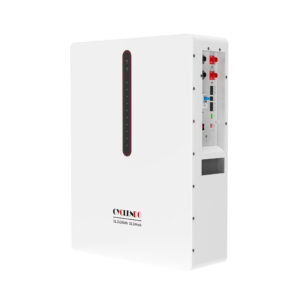

The 48V 200Ah energy storage wall mounted lithium battery is a high capacity, high voltage lithium battery product designed for energy storage systems such as solar energy storage systems or UPS (Uninterruptible Power Supply) systems in home and commercial applications.
LFP Prismatic Cells
CYP-51200
650*485*180 mm
100kg
10KWH
≥ 6000 times
Lithium home battery,also called wall mounted battery, is a high performing storage battery developed to provide house sustainable energy. It stores extra electricity produced by sun in daytime,while keep home powered at night or electricity failure time.For saving electricity bills and backup emergency power, this lithium house battery can be a good choice. Check other models of our storage batteries.
|
Item
|
General Parameter
|
Remark
|
|
Combination method
|
16S4P
|
|
|
Rated Capacity
|
200Ah
|
Standard discharge after Standard charge
|
|
Factory Voltage
|
51.5V-52.8V(40-60%)
|
Mean Operation Voltage
|
|
Discharge Cut-off Voltage
|
40-44V
|
|
|
Charging Voltage
|
58.4V
|
|
|
Internal Impedance
|
≤50mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Standard charge current
|
20A
|
Charge time : Approx 6 h
|
|
Limiting charge current
|
20A
|
|
|
Standard discharge current
|
20A |
|
|
Max Continuous Charge Current
|
200A
|
|
|
Max Continuous Discharge Current
|
200A
|
200A when 0ºC＞T≥-10ºC
100A when -10ºC＞T≥-20ºC |
|
Operation Temperature Range
|
Charge: 0~45℃
|
60±25%R.H.
Bare Cell |
|
Discharge: -20~55℃
|
||
|
Storage Temperature Range
|
-10~35℃
|
Less than 12 months
|
|
-10~45℃
|
Less than 3 months
|
|
|
-20~65℃
|
Less than 7 day
|
|
|
Dimensions
|
650*485*180 mm
|
|
|
Weight
|
100kg
|
Excellent protection:
IP65-rated wall-mounted batteries have excellent dust and water resistance. The number "6" means that they are completely dustproof and will not be disturbed by any dust; the number "5" means that they can resist the intrusion of low-pressure jets of water, and the battery can operate safely even in harsh climate conditions such as heavy rain or storms. This high level of protection enables the battery to work stably for a long time in indoor and outdoor environments without being affected by weather changes.
Strong adaptability:
The IP65-rated design makes the energy storage wall-mounted battery suitable for a variety of application scenarios, including home residences, commercial buildings, and industrial facilities. Whether it is installed on indoor walls or in outdoor open-air environments, its performance and safety can be guaranteed.
Long-term durability:
The high protection level not only enhances the battery's adaptability to environmental conditions, but also extends its service life. IP65-rated wall-mounted batteries usually use weather-resistant materials and sealed structures, which can resist ultraviolet rays, extreme temperature changes, and chemical erosion, thereby ensuring that the battery can still maintain efficient and stable performance over many years of use.
Safe and reliable: IP65-rated waterproof wall-mounted batteries not only maintain safe operation in bad weather, but also effectively prevent the internal components of the battery from being damaged by water and dust, reducing the risk of failure. This reliability is especially important for long-term investments and battery-dependent applications.
Working Mode of grid 48v 200ah solar battery
(1) PV Solar Priority Mode
In this mode, the power supply to the load is fed by the solar panel input. The amount of electricity generated by the solar cell is stored in the powerwall in addition to the user load. When the amount of electricity generated by solar does not meet the user load, the amount of electricity stored in the battery bank is replenished to the load.
(2) AC Priority Mode
In this mode, the power supply of the load is provided by the mains input. Solar power only charges the house battery; When the battery power is seriously insufficient, the AC mains will start to charge the battery.When the AC mains is powered off or abnormal, the system will switch to the battery to supply power to the load.
48v powerwall battery Series
|
SERIES
|
Model
|
Weight
|
Energy
|
Dimension
|
Discharge Current (max)
|
|
15S
|
48V 100AH
|
≈ 56KG
|
4.8KWh
|
485*650*180mm
|
100A
|
|
48V 150AH
|
≈ 75KG
|
7.2KWh
|
|||
|
48V 200AH
|
≈ 95KG
|
9.6KWh
|
|||
|
16S
|
51.2V 100AH
|
≈ 58KG
|
5.12KWh
|
||
|
51.2V 150AH
|
≈ 78KG
|
7.68KWh
|
|||
|
51.2V 200AH
|
≈ 100KG
|
10.24KWh
|
1.OEM&ODM manufacturer with various design and one-stop solar battery solution.
2.Reliable quality; Factory direct price; Complete production lines.
3.Timely and professional pre-sales service and after-sales service.
4.100% test before shipment; Solid package; Fast delivery and stable shipment.
1.Where can I get the price of waterproof 10kwh solar energy storage battery?
Welcome to contact the Online Services. If it's not our working time,
please click "Send Inquiry" above or "Leave a Comment" below,
We will offer you the best quote in 24 hours after we get the product specifications
such as voltage capacity application etc.
2.How can you guarantee your quality?
Normally we will send you a sample to confirm everything first.
We will make the big order exactly the same as you request.
3.What about the lead time for mass production?
It depends on your order quantity.Normally 1-2days if we have sample in stock,
5-7days for newly produced samples.10-20 day for big order.
4.What shipping method can I choose? How about the shipping time?
Express (3-7 working days), suitable for urgent time or small quantity.
Sea (15-30 days), it suitable for mass production.
Air (4-7 days), from airport to airport.
48v 200ah lithium battery for home energy storage
